Toru servade faasimasina lõikur Xpipe’i

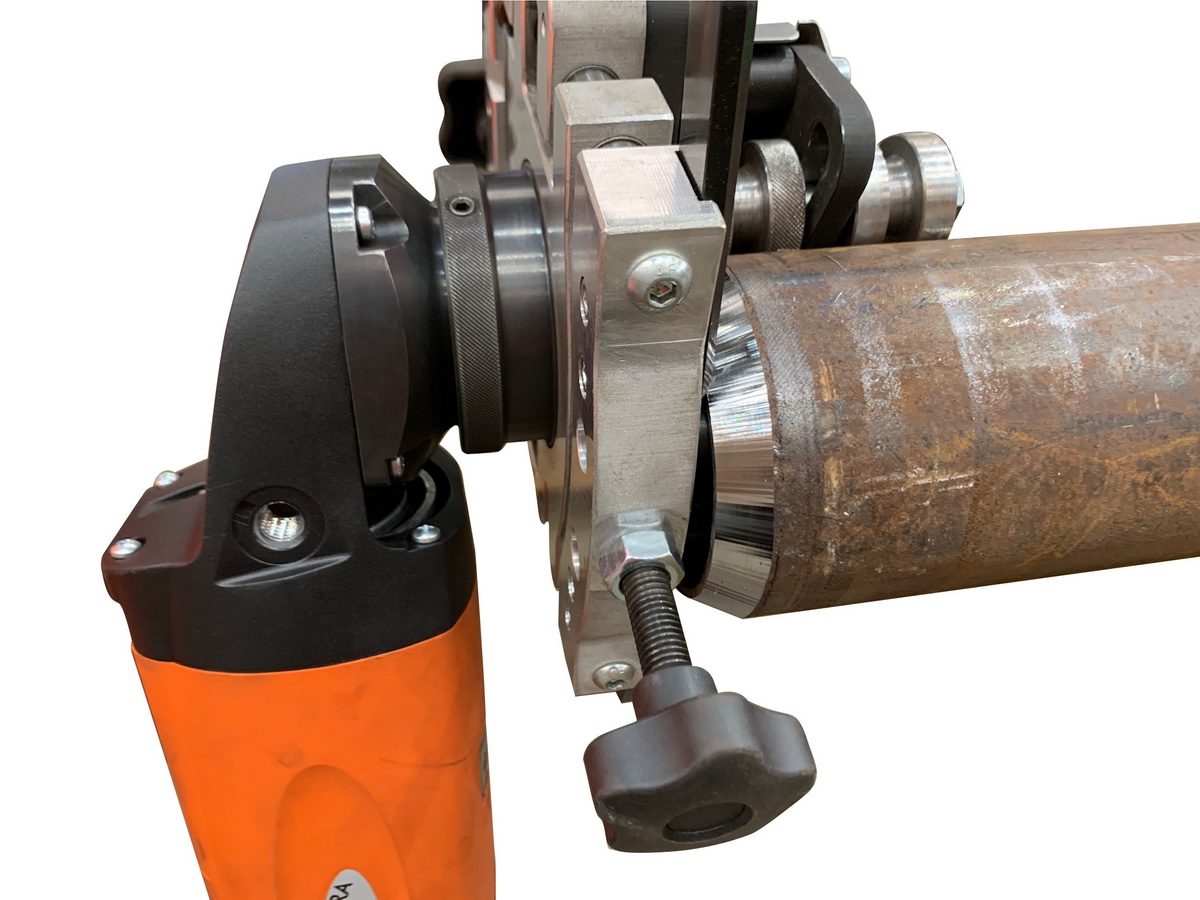

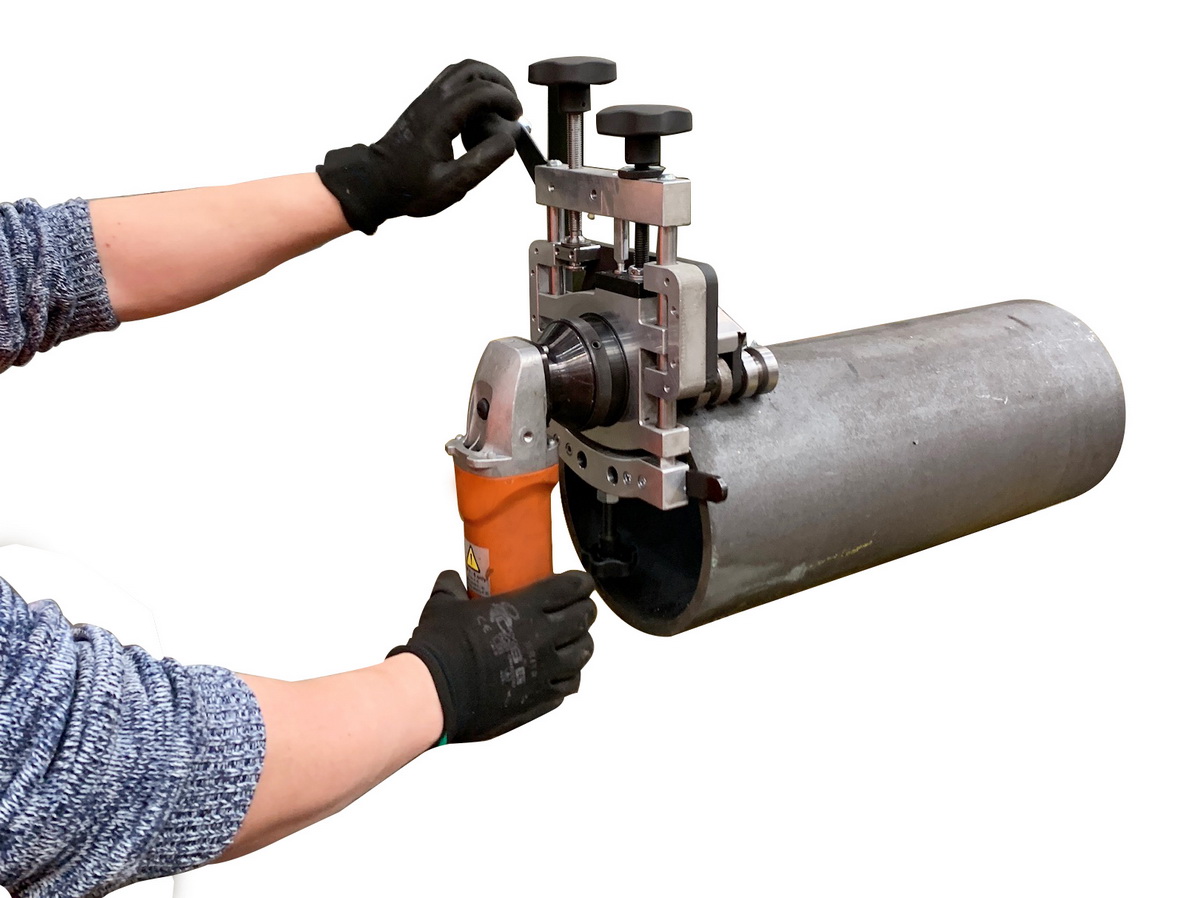

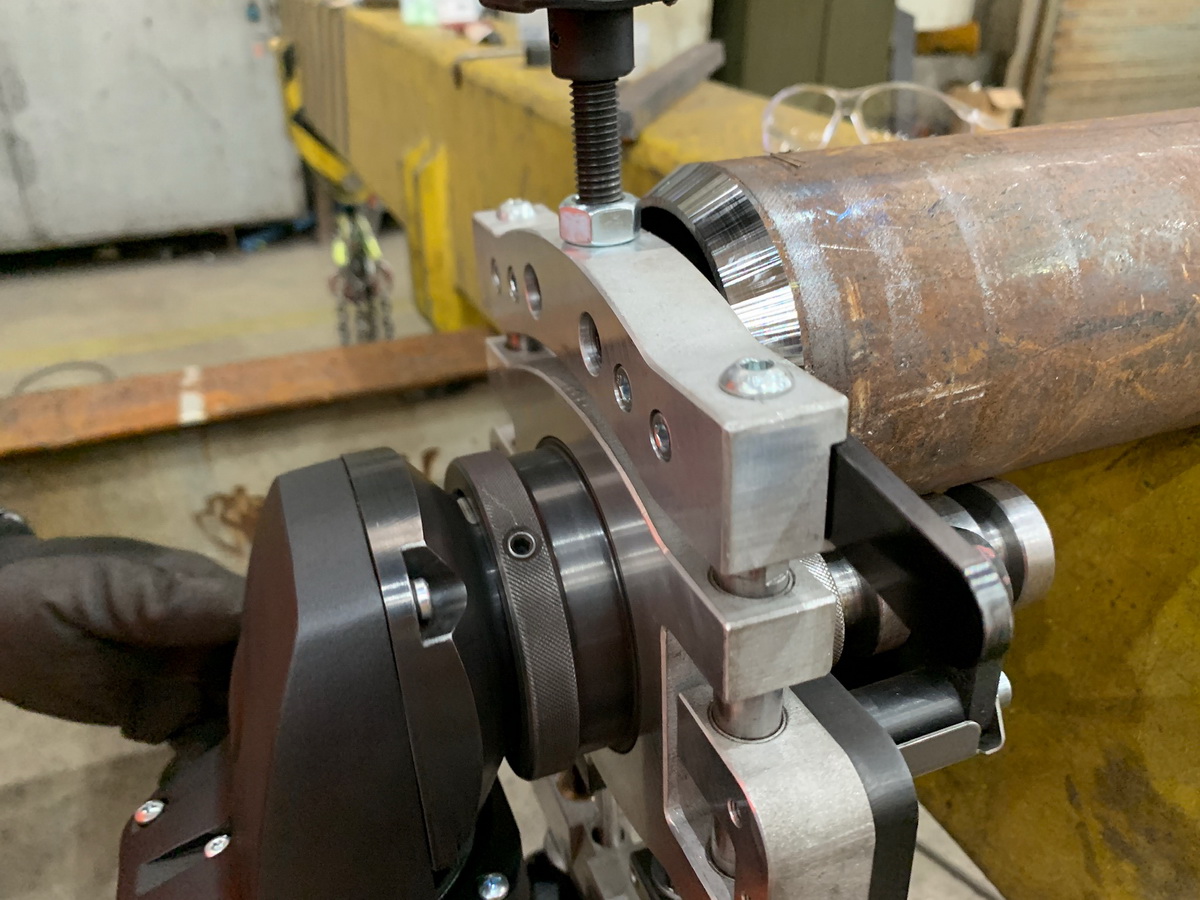

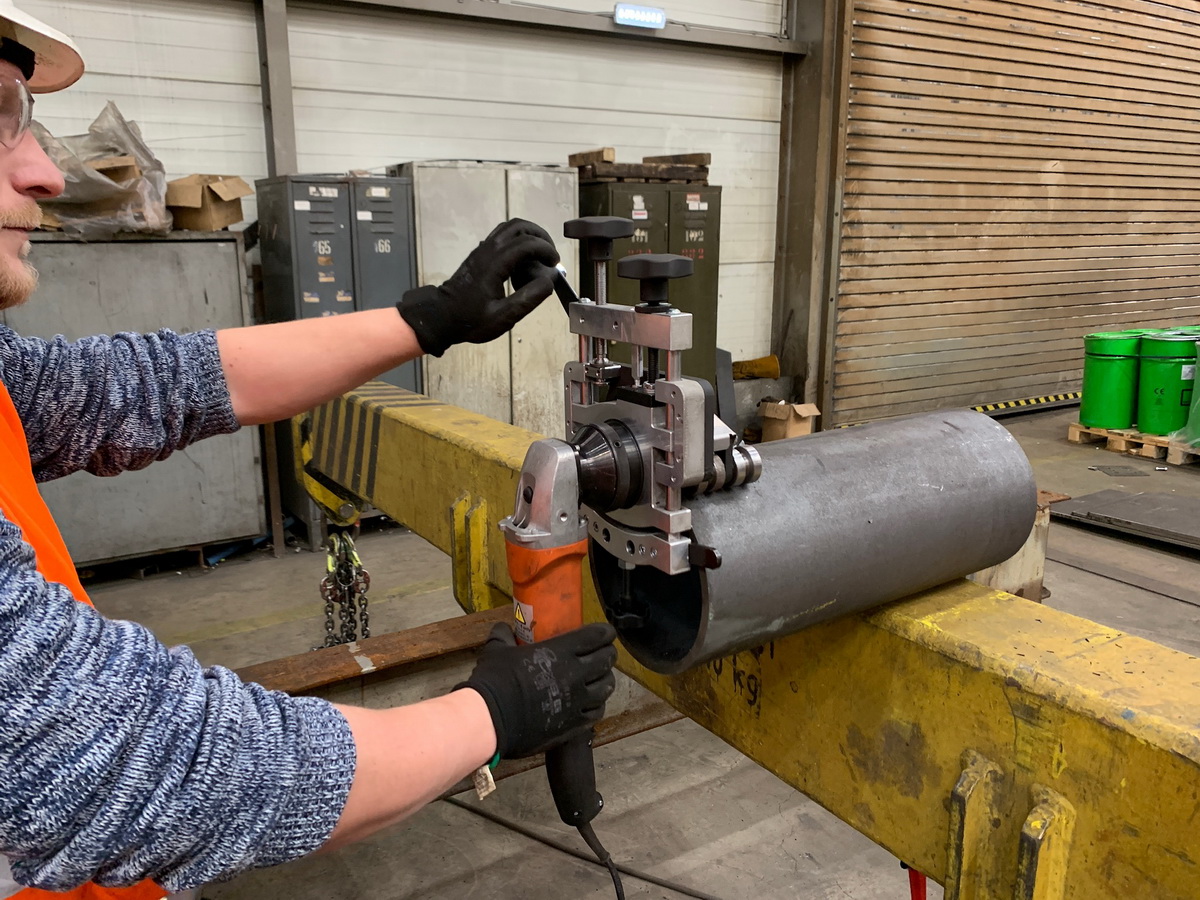

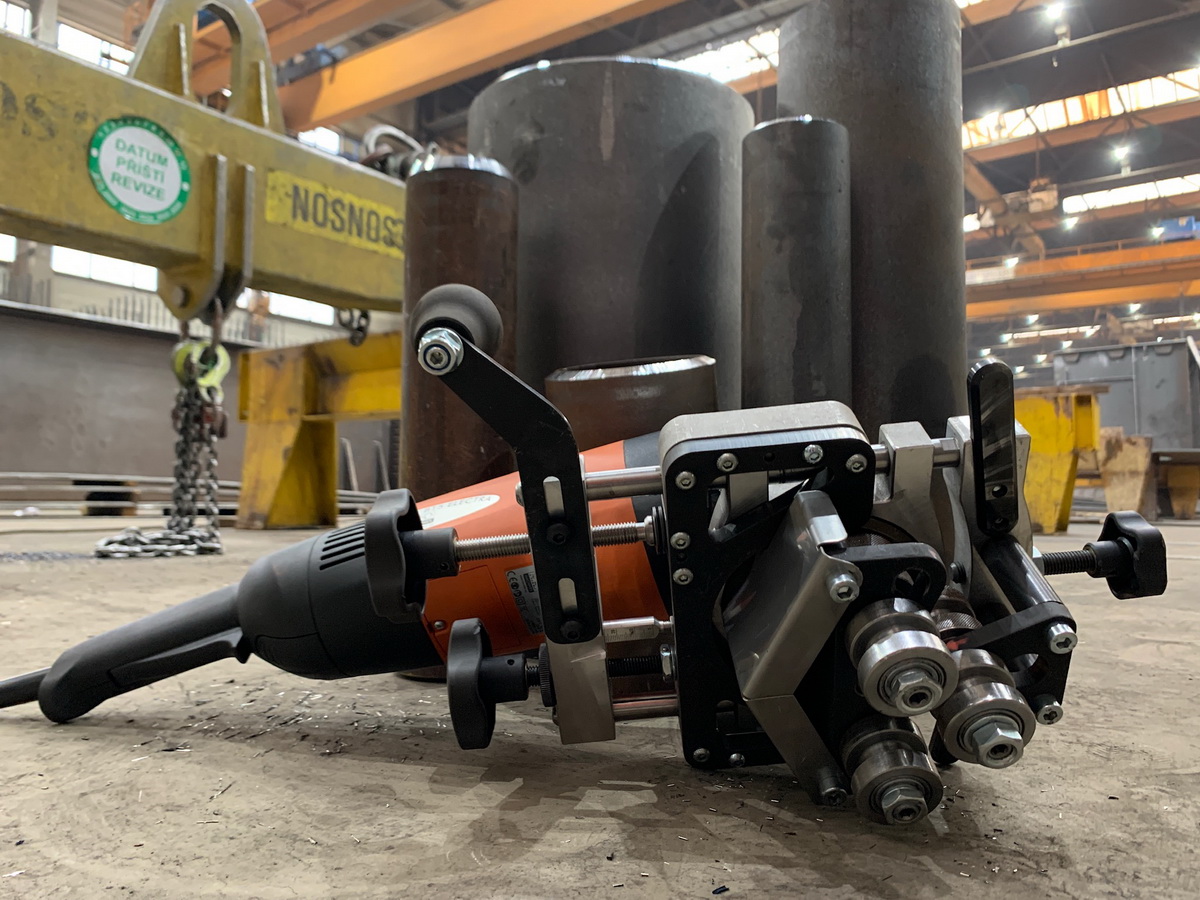

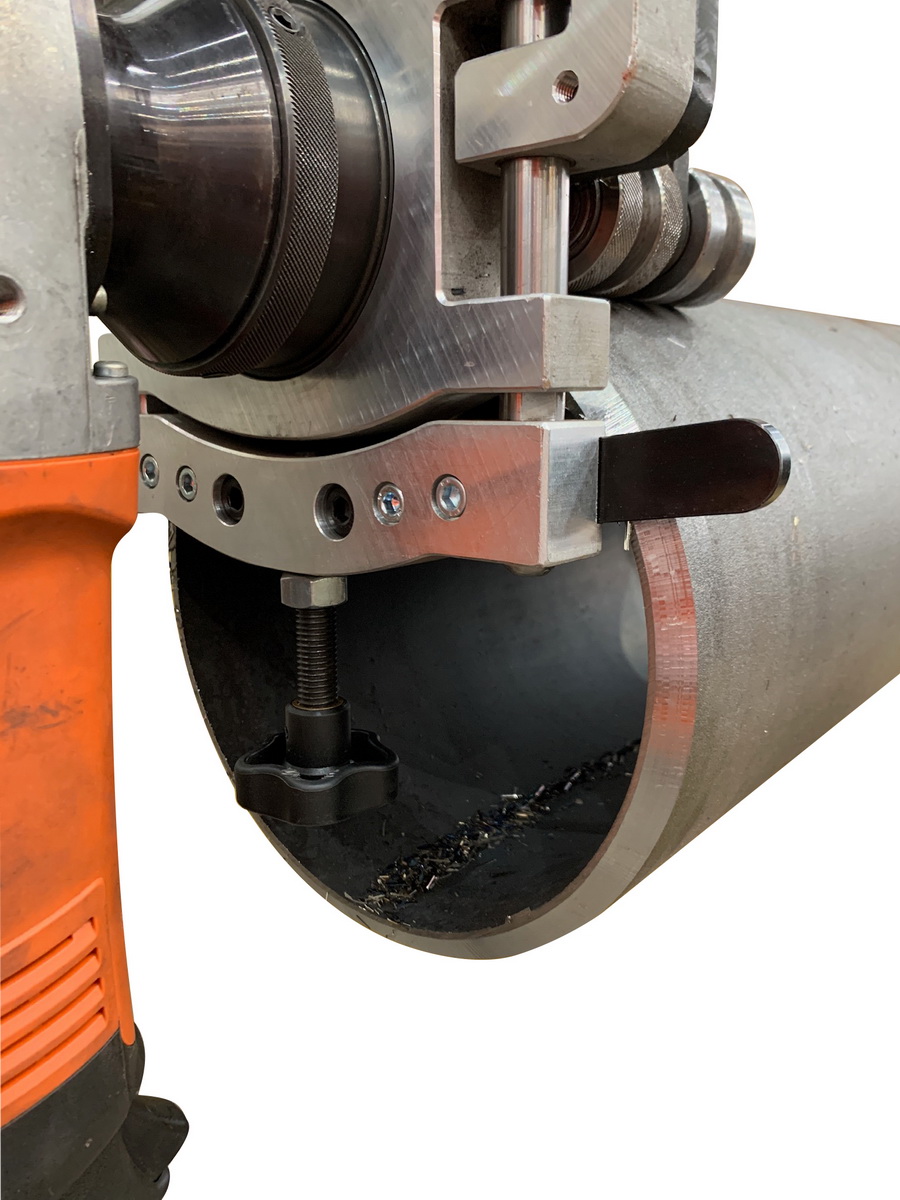

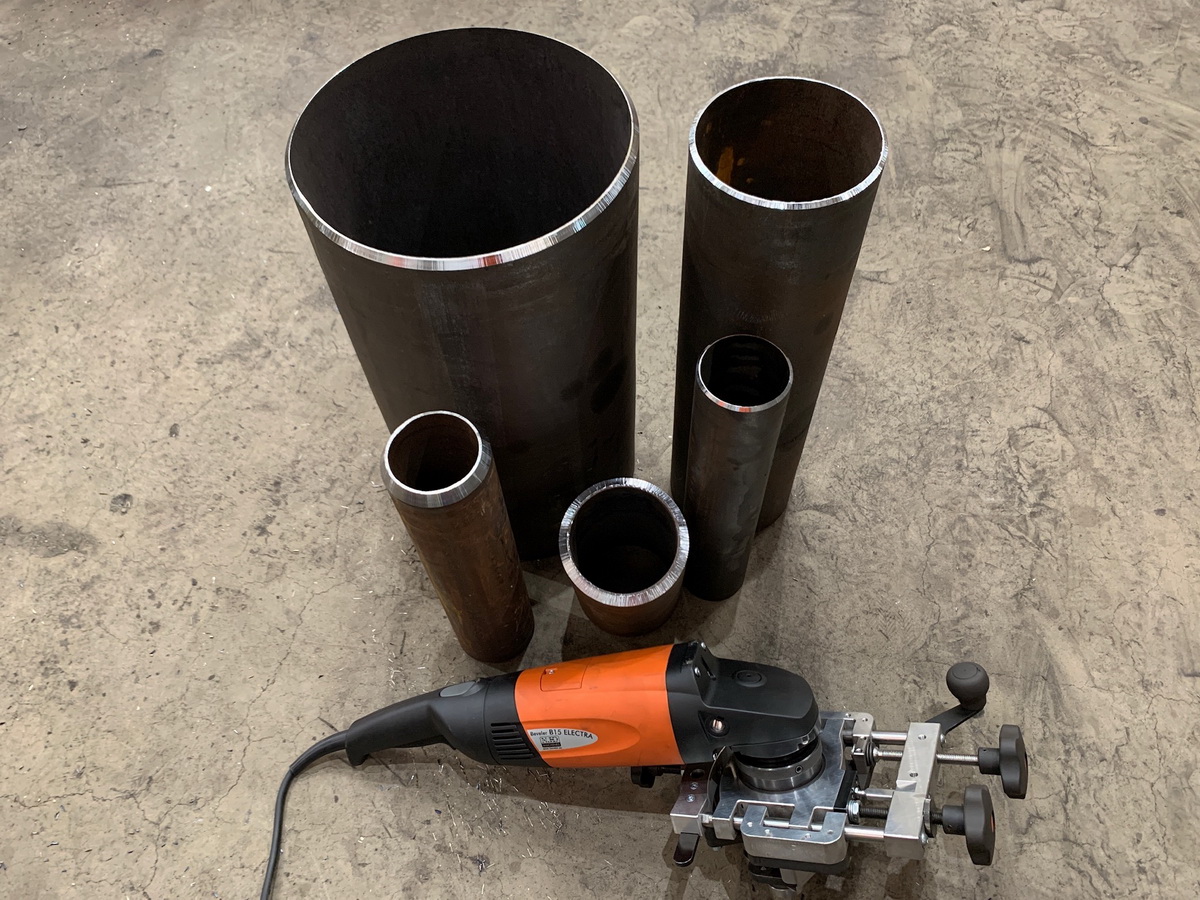

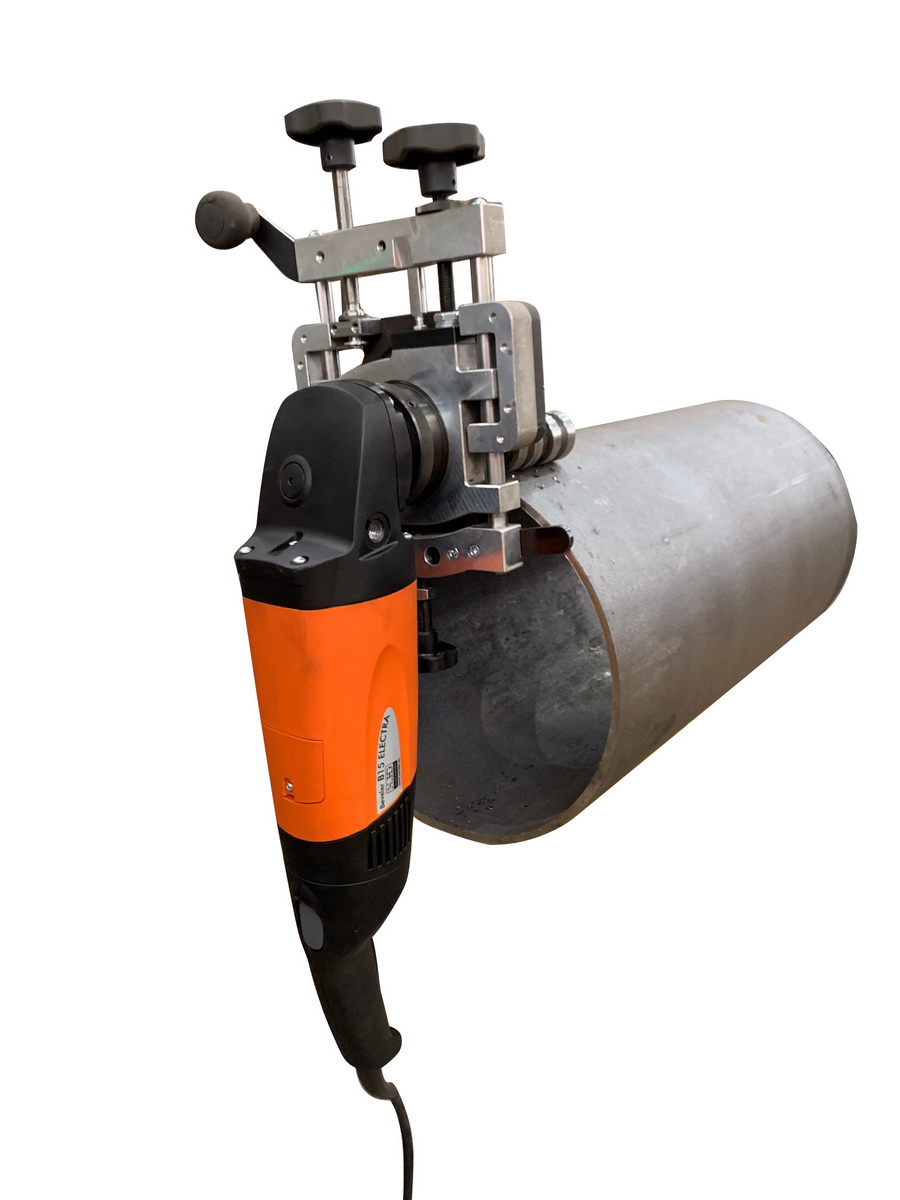

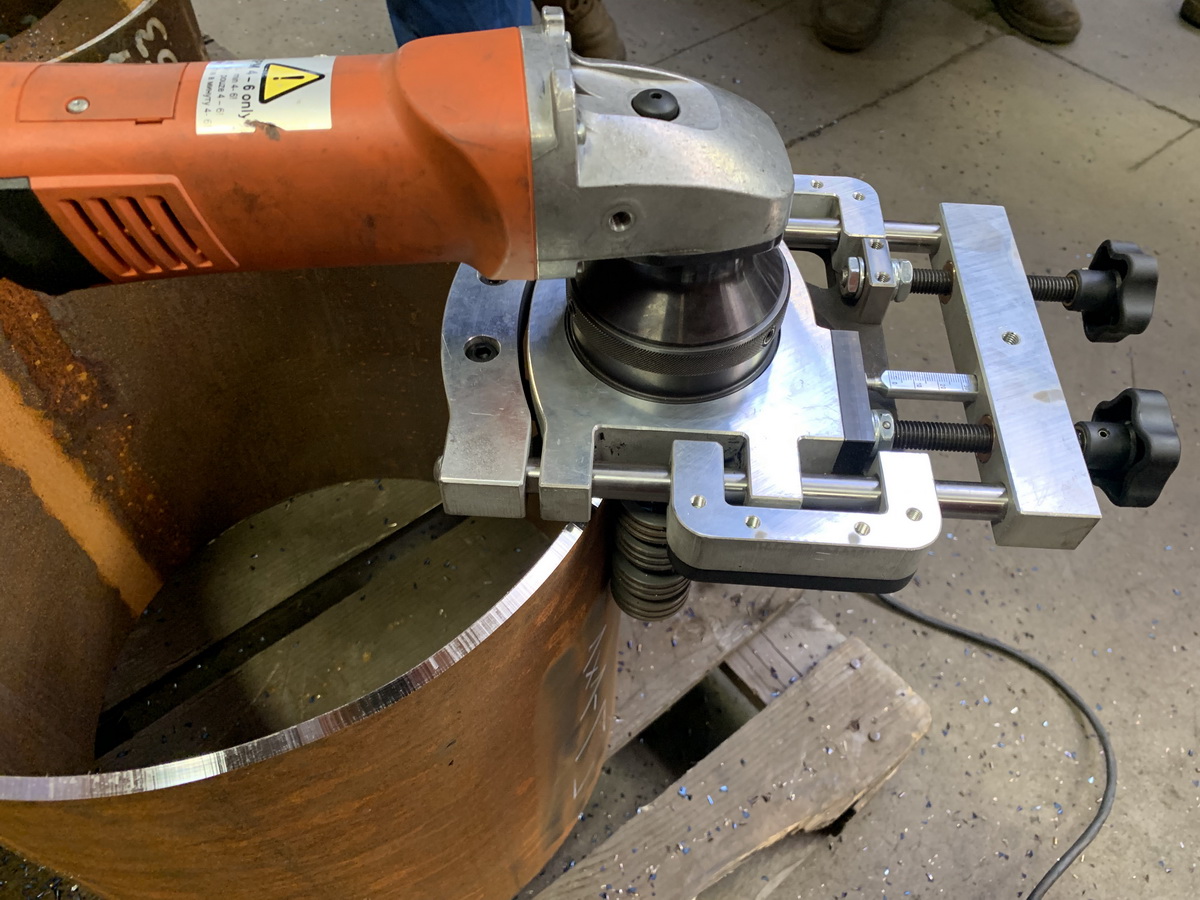

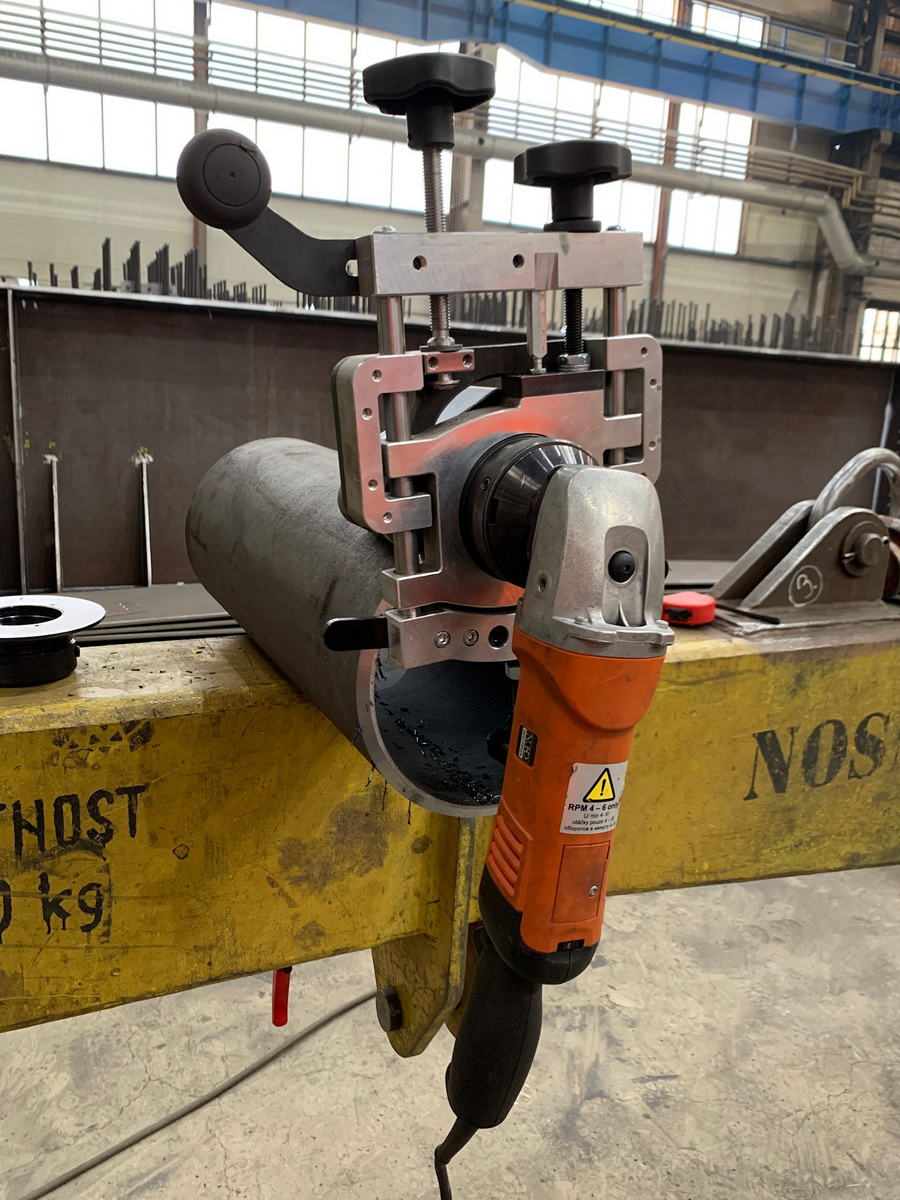

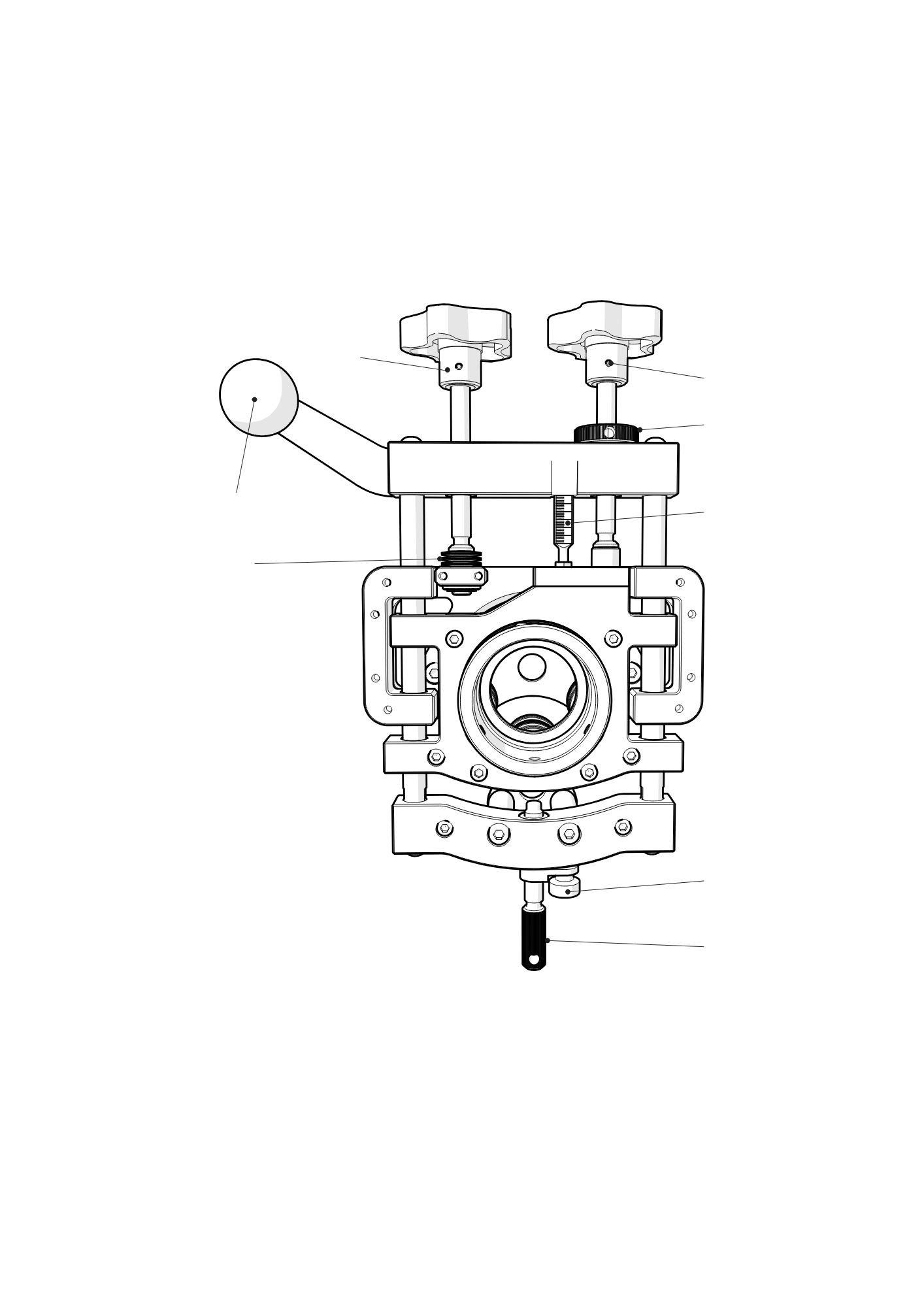

Xpipe Beveler on spetsiaalne tööriist torude ja tasapindade kiireks ning täpseks faasimiseks alates diameetrist Ø 85 mm.
Süsteem tagab sujuva ja ohutu töö tänu unikaalsele juhtrullikute mehhanismile, mis hoiab faasinurka stabiilsena ja vähendab vibratsiooni.

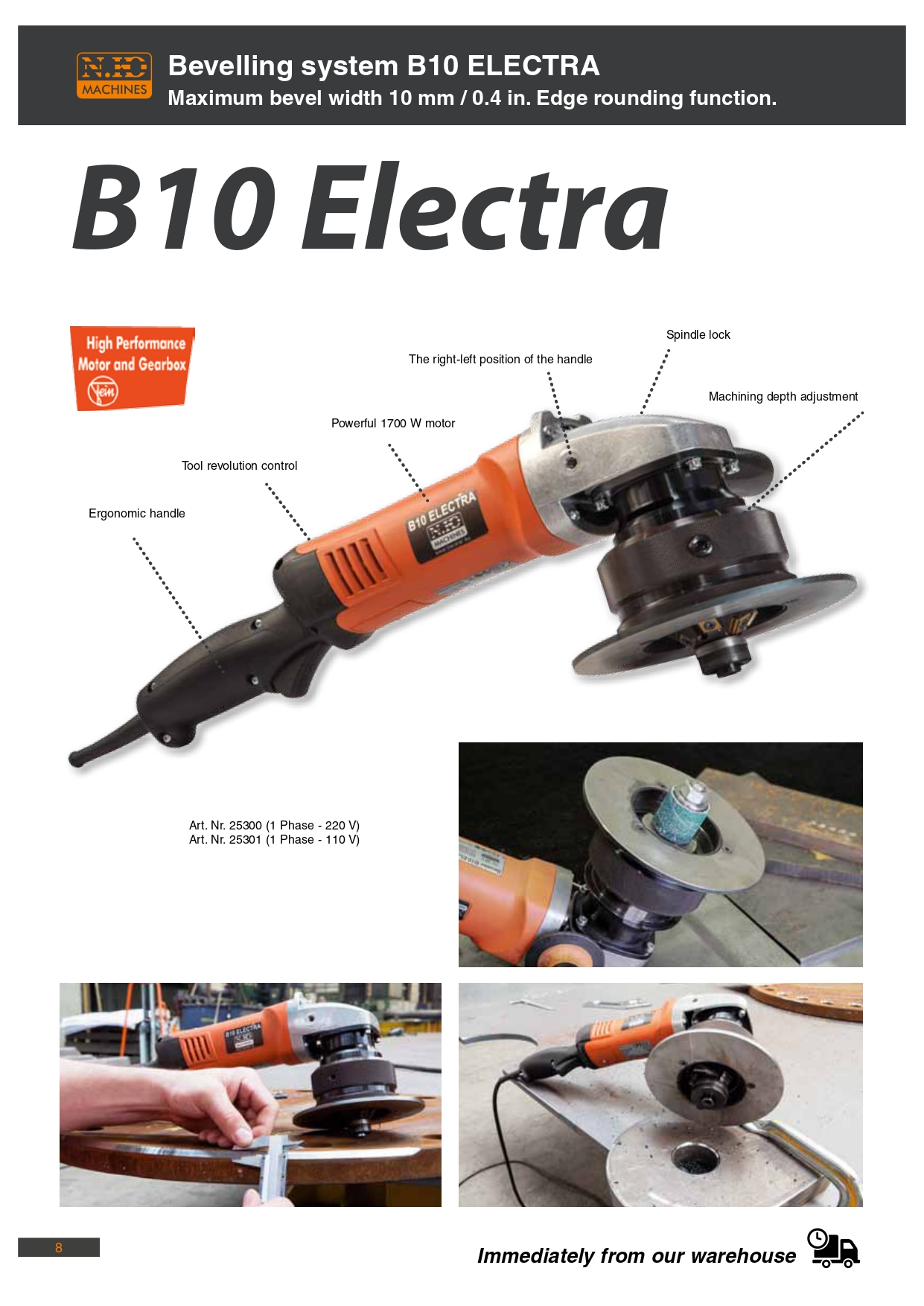

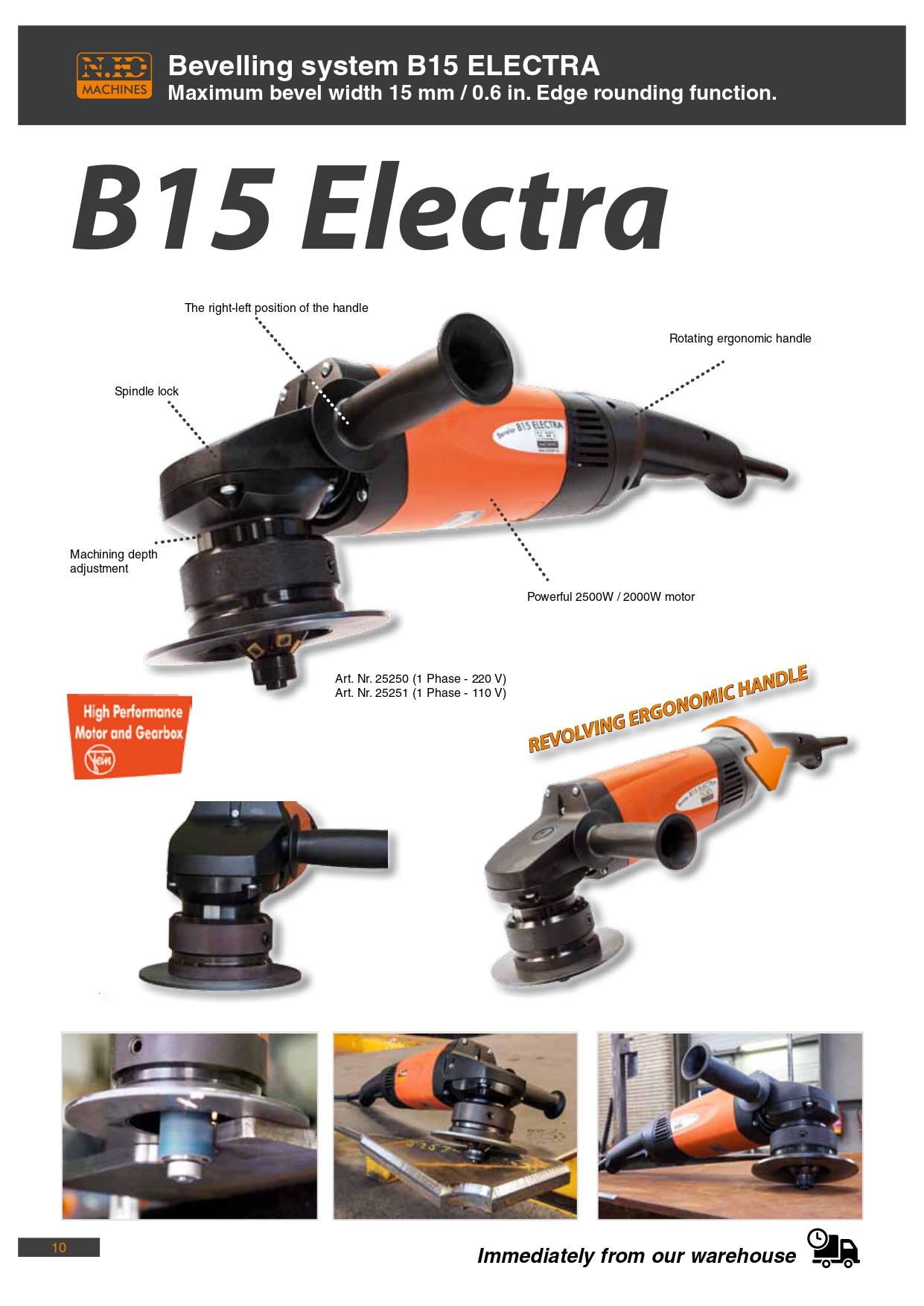

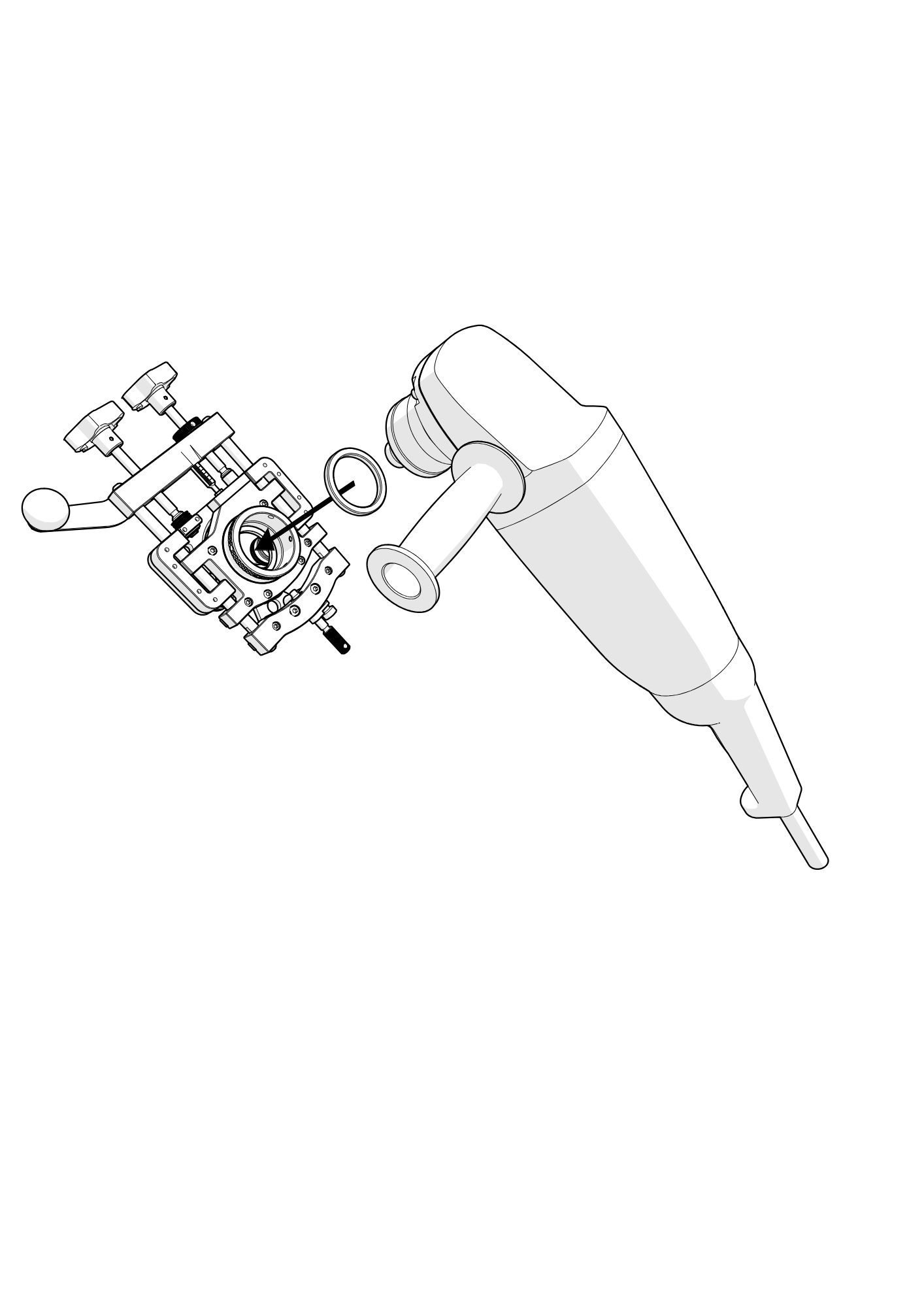

Sobib kasutamiseks koos B10 Electra, B15 Electra ja B15 AIR faasimismasinatega.

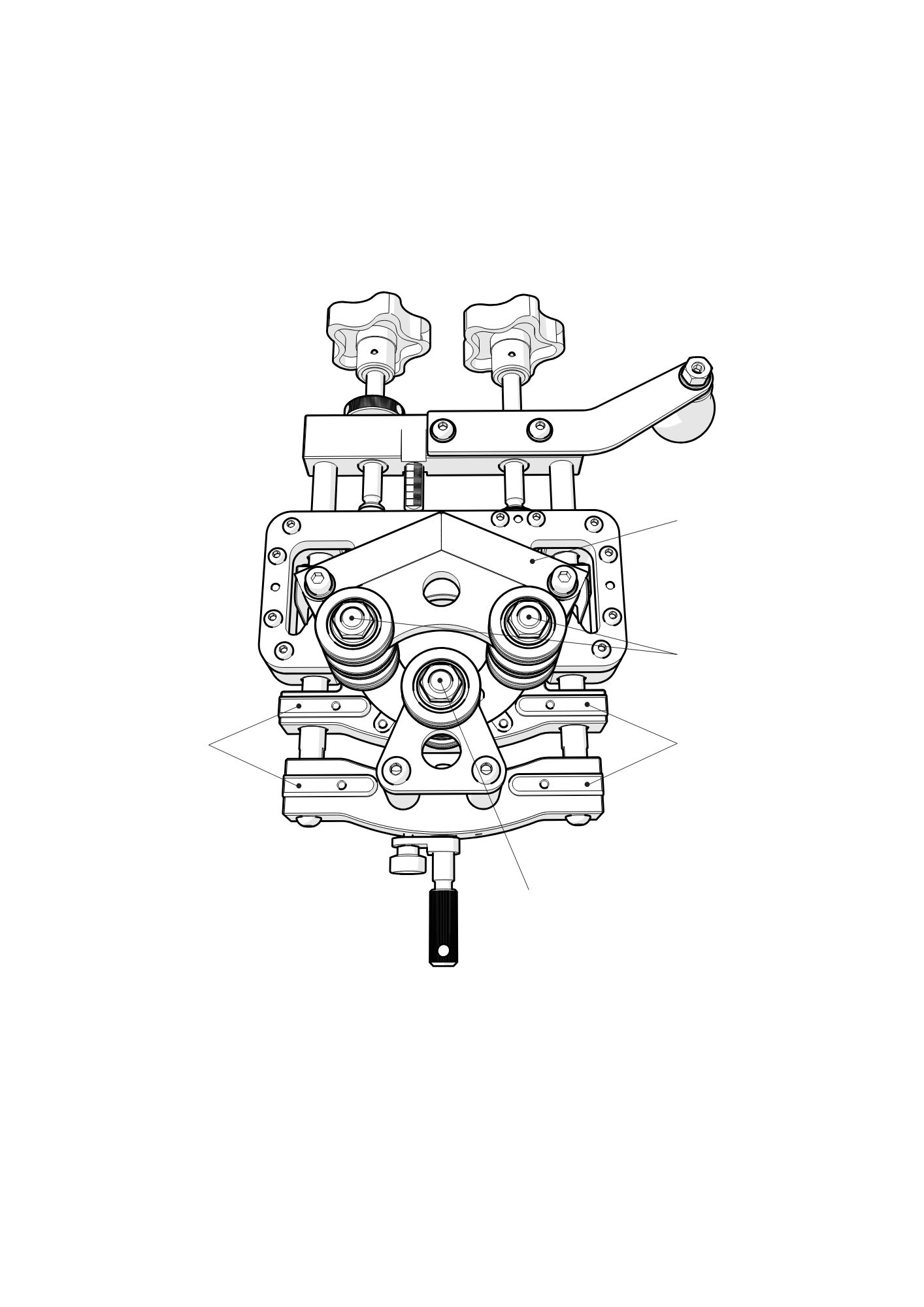

Täpne juhtrullikute mehhanism – tagab ühtlase lõike ja stabiilse faasinurga ka ebatasastel torudel.
Ohutu ja mugav töö – ühe suuna laagrid välistavad tagasilöögi materjaliga kokkupuutel.
Kerge ja ergonoomiline konstruktsioon – alumiiniumraam ning pöörlev käepide tagavad mugava käsitsemise ja tootlikkuse.

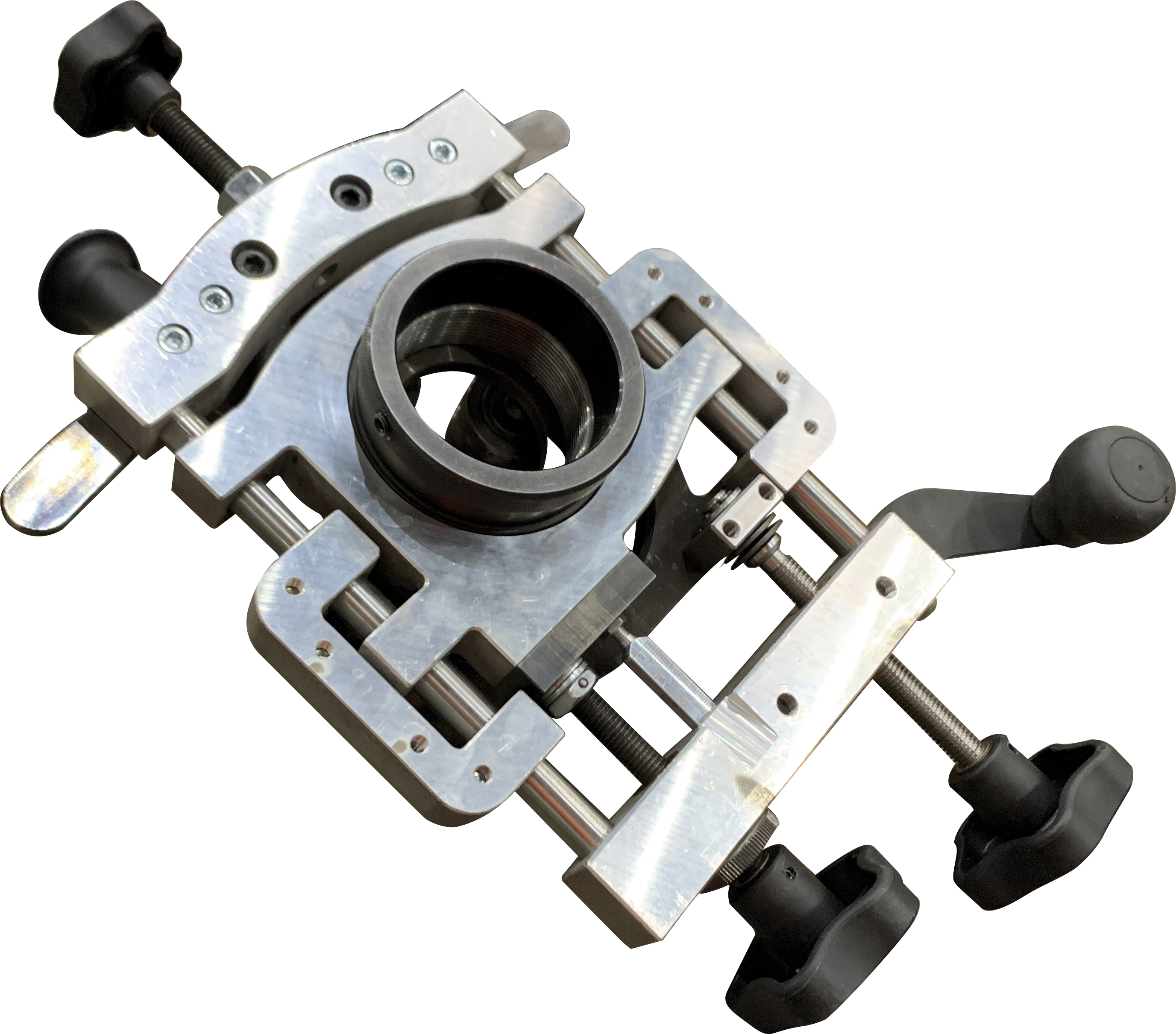

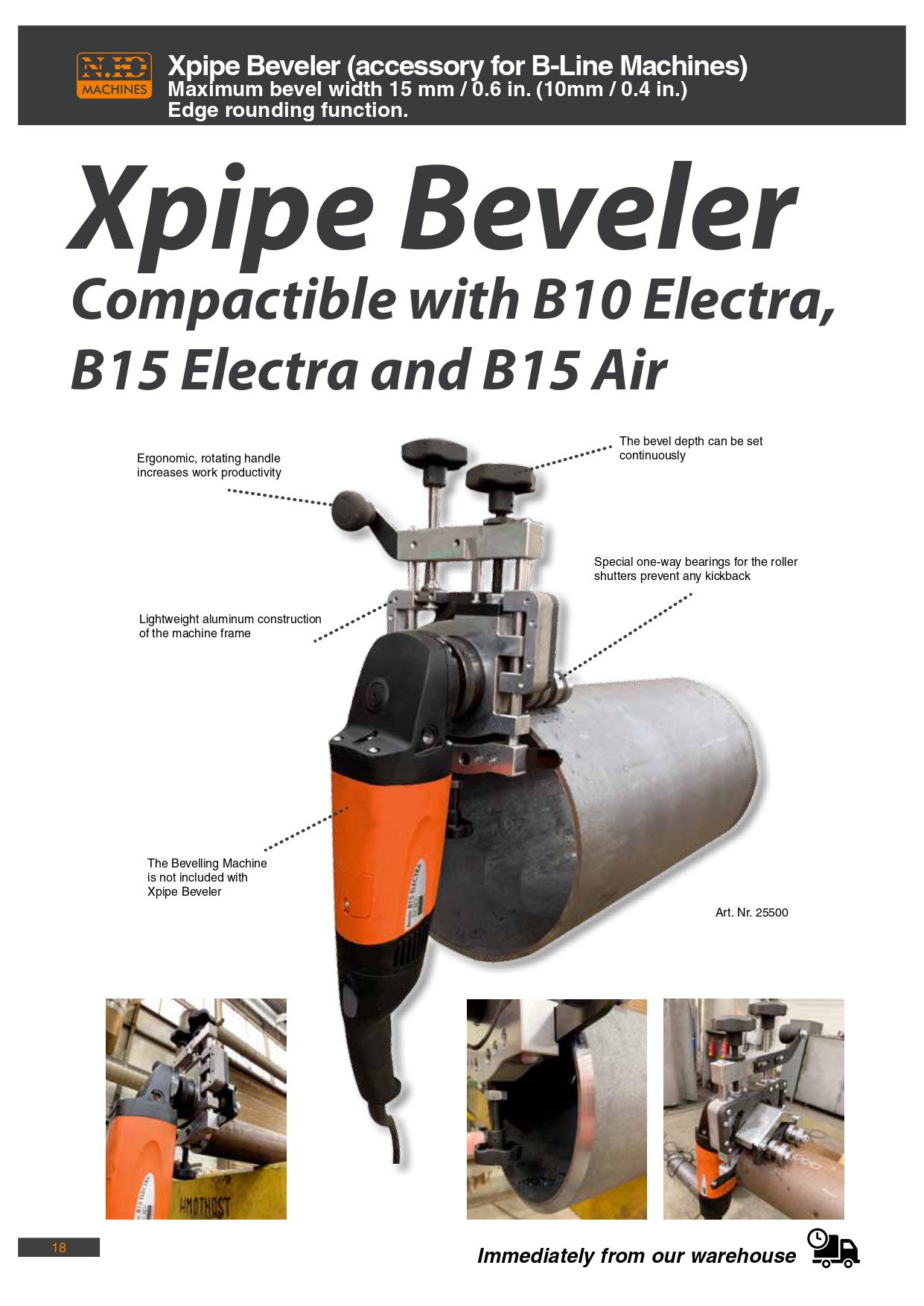

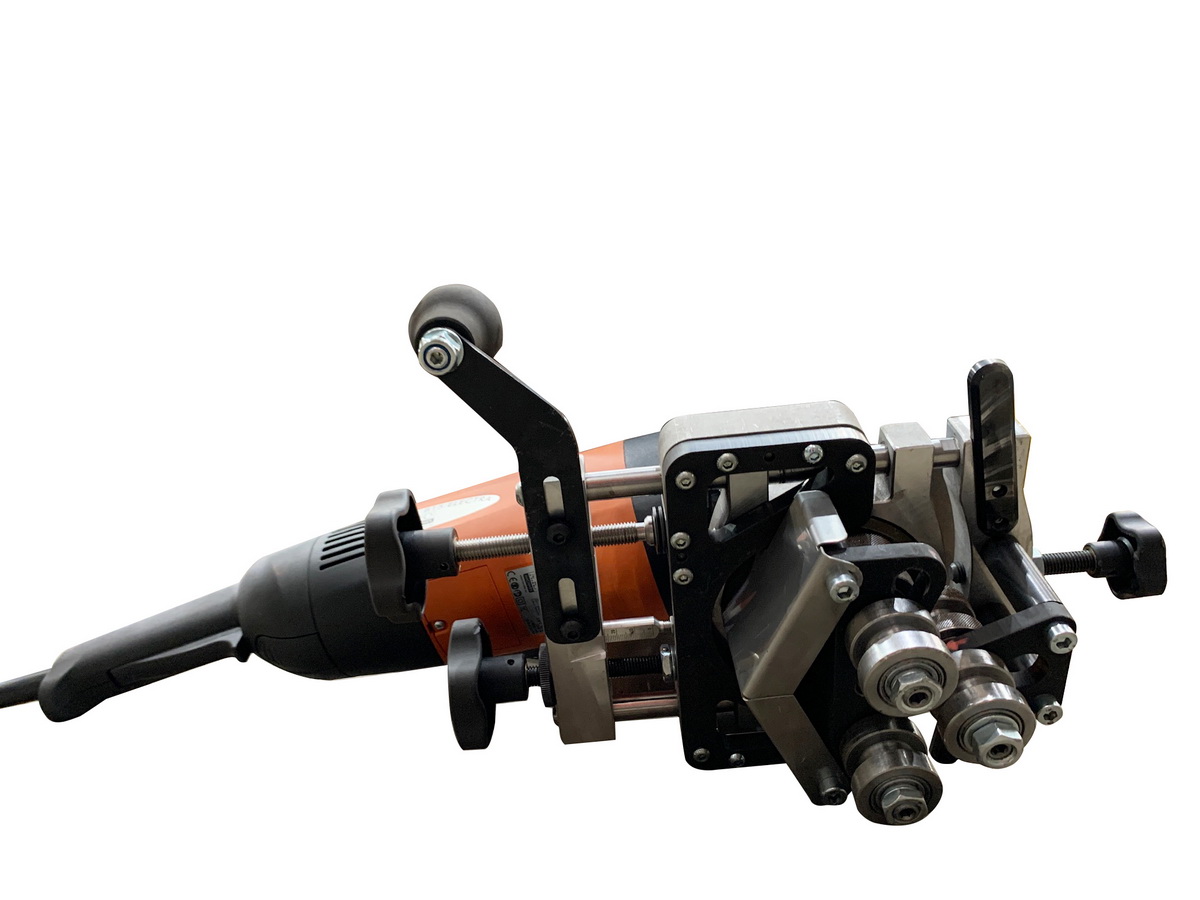

Xpipe Beveler tööriist Faasimasinale
Peamised omadused
- Täpne juhtrullikute mehhanism tagab sujuva liikumise ümber toru ja stabiilse faasinurga.
- Ühesuunalised laagrid väldivad tagasilööki ja suurendavad tööohutust.
- Tugev raam tagab lõikesügavuse püsivuse ja vibratsioonivaba töö.
- Kerge alumiiniumkonstruktsioon muudab seadme käsitsemise mugavaks.
- Pöörlev ergonoomiline käepide tõstab tootlikkust ja kasutusmugavust.
- Sobib erinevate torude ja lehtmetallide faasimiseks.
- Turvakate kaitseb operaatorit lendavate metalliosakeste eest.

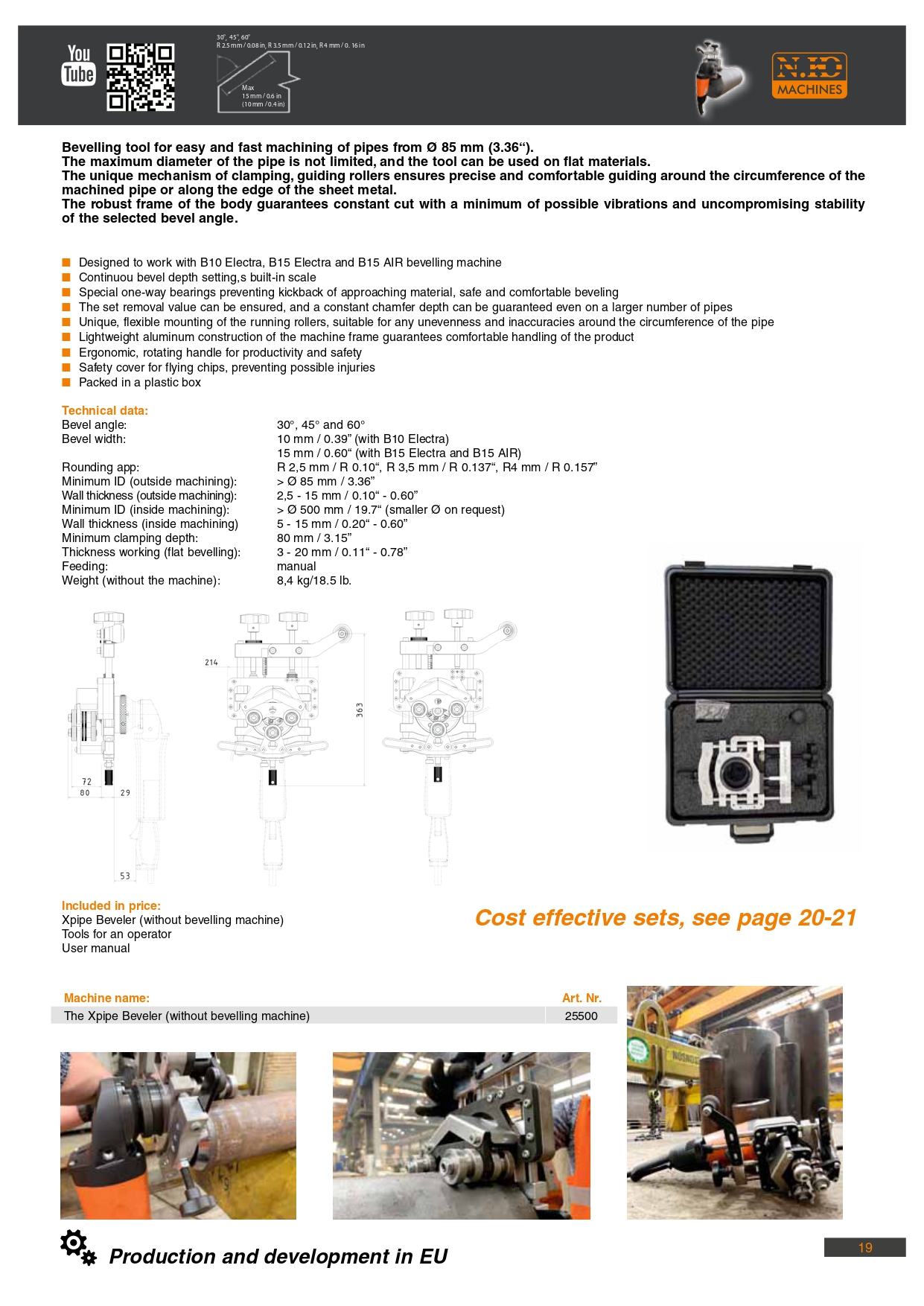

Tehnilised andmed
Ühilduvad masinad: B10 Electra, B15 Electra, B15 AIR
Faasimisnurk: vastavalt lõikepeale (30° / 45° / 60°)
Maksimaalne faasi laius: 10 mm või 15 mm (olenevalt masinast)
Tööpiirkond (väline diameeter): alates Ø 85 mm
Seina paksus (väline diameeter): 2,5 – 15 mm
Tööpiirkond (sisemine diameeter): alates Ø 500 mm (väiksem Ø eritarvikuga)
Seina paksus (sisemine diameeter): 5 – 15 mm
Minimaalne kinnitus sügavus: 80 mm
Edasiliikumine: käsitsi
Kaal: 8,4 kg (ilma B10/B15 masinata)
Komplekt
Xpipe Beveler (ilma B10 / B15 masinata)

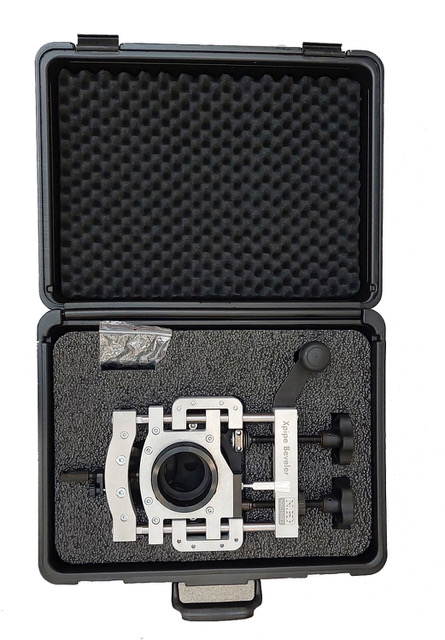

Plastikust transpordikohver
Tööriistad hoolduseks ja seadistamiseks
Kasutusjuhend
Lisatarvikud
| Machine name: | 1Phase-230V | 1Phase-120V |
| Xpipe Beveler (beveler B10 Electra / B15 Electra / B15 AIR is not included) | 25500 | 25500 |

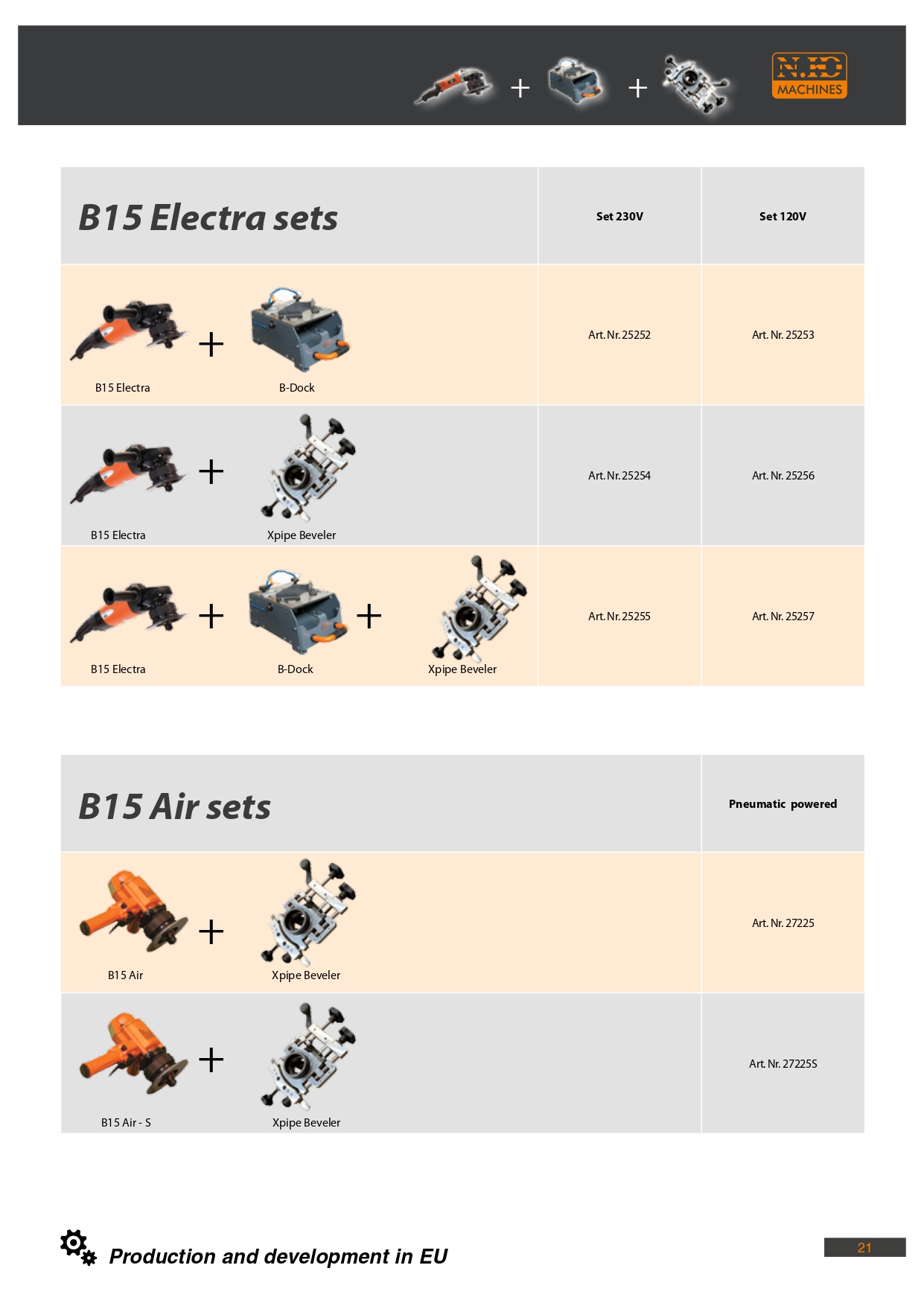

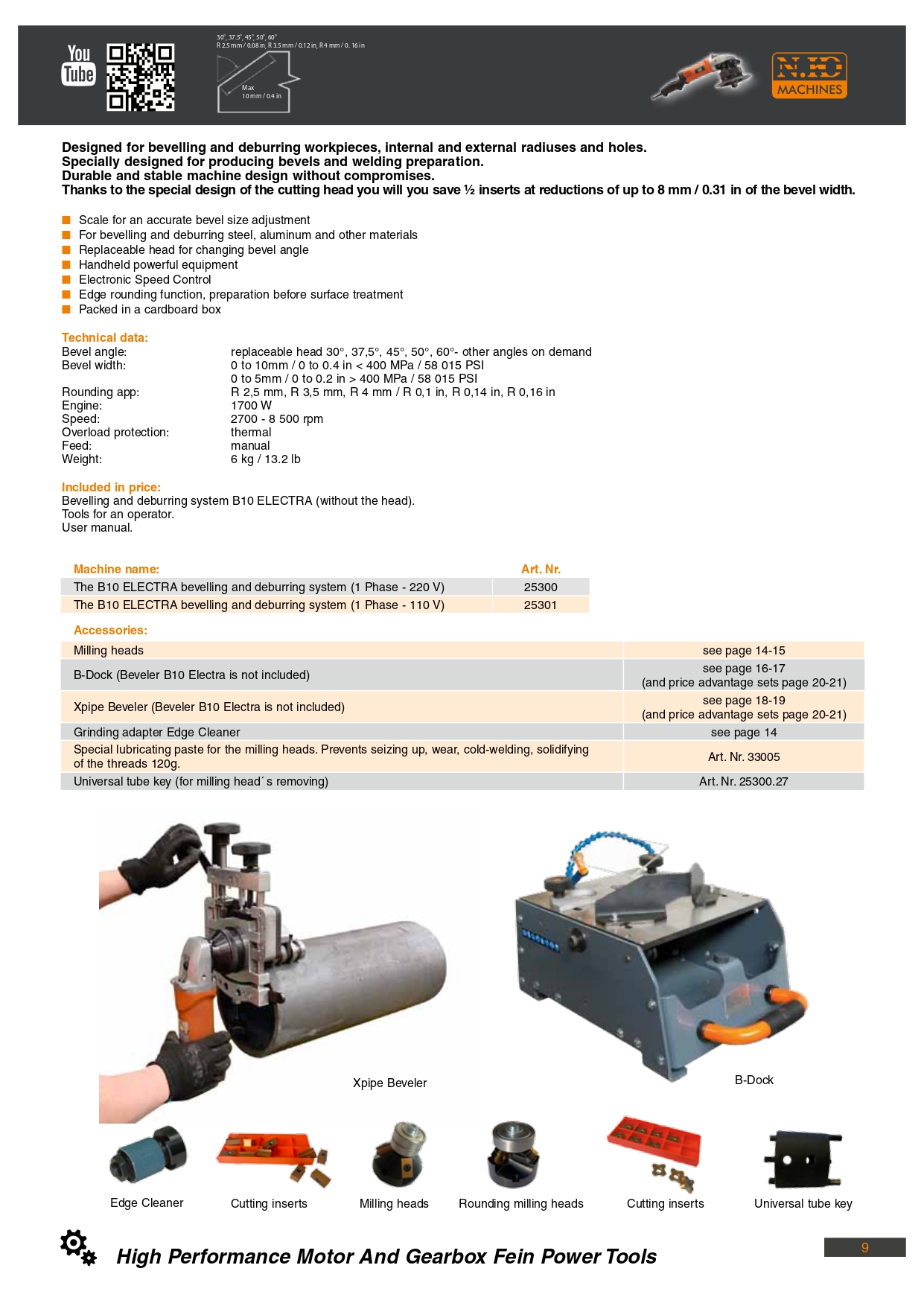

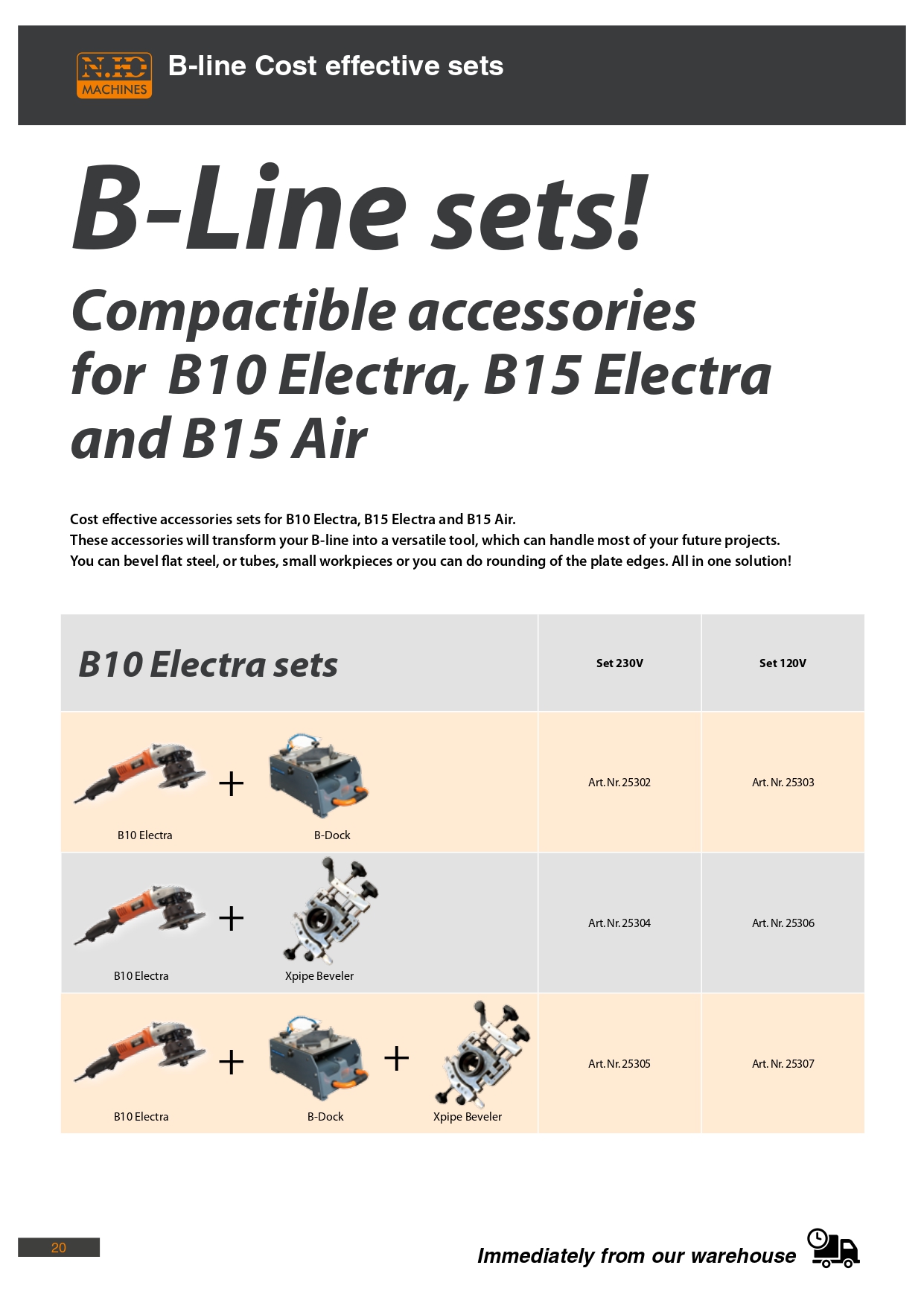

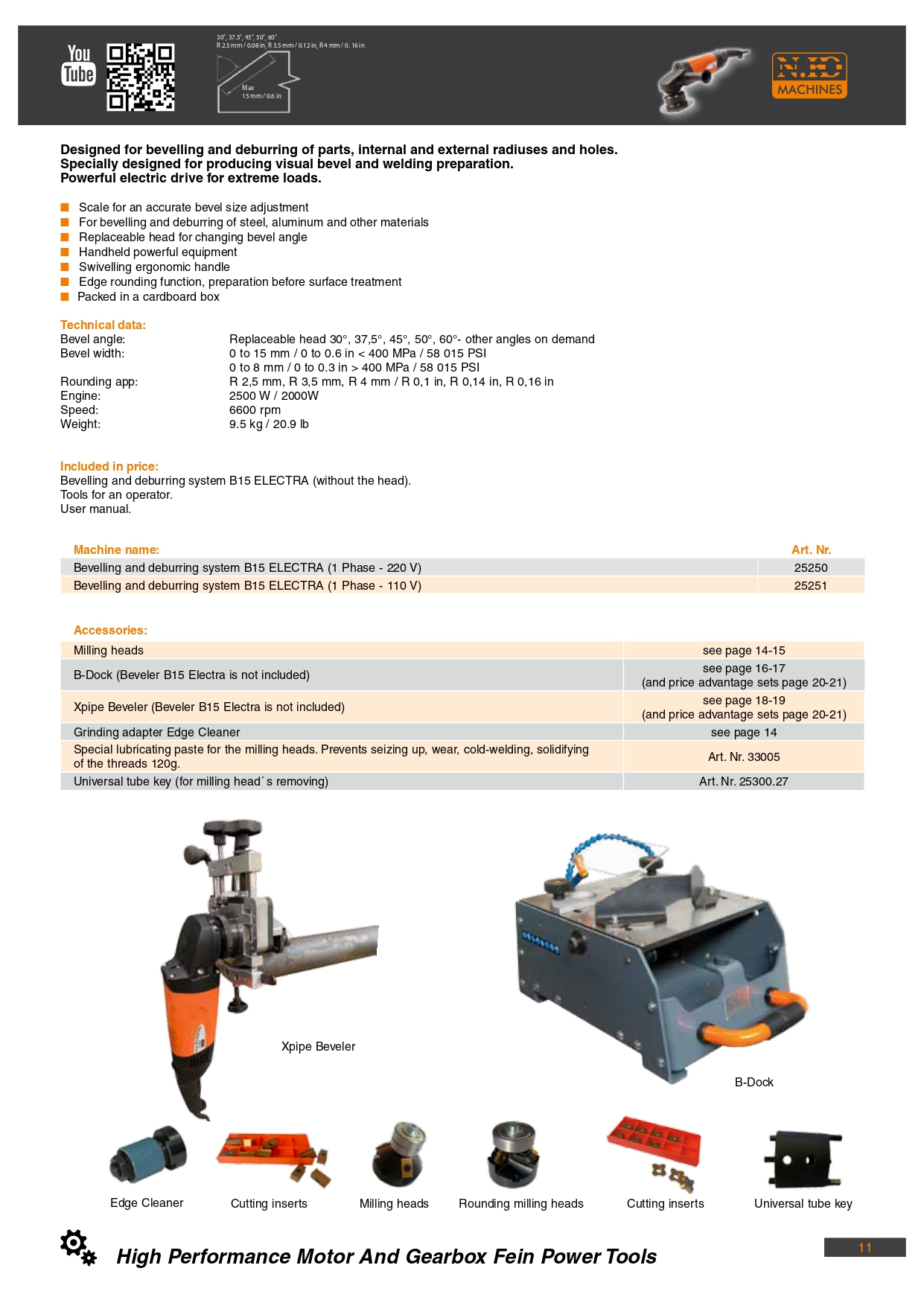

| SET Bevelling system B10 ELECTRA + Xpipe Beveler (without the milling head) | 25304 | 25306 |
| SET Bevelling system B15 ELECTRA + Xpipe Beveler (without the milling head) | 25254 | 25256 |
| SET Bevelling system B10 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head) | 25305 | 25307 |
| SET Bevelling system B15 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head) | 25255 | 25257 |

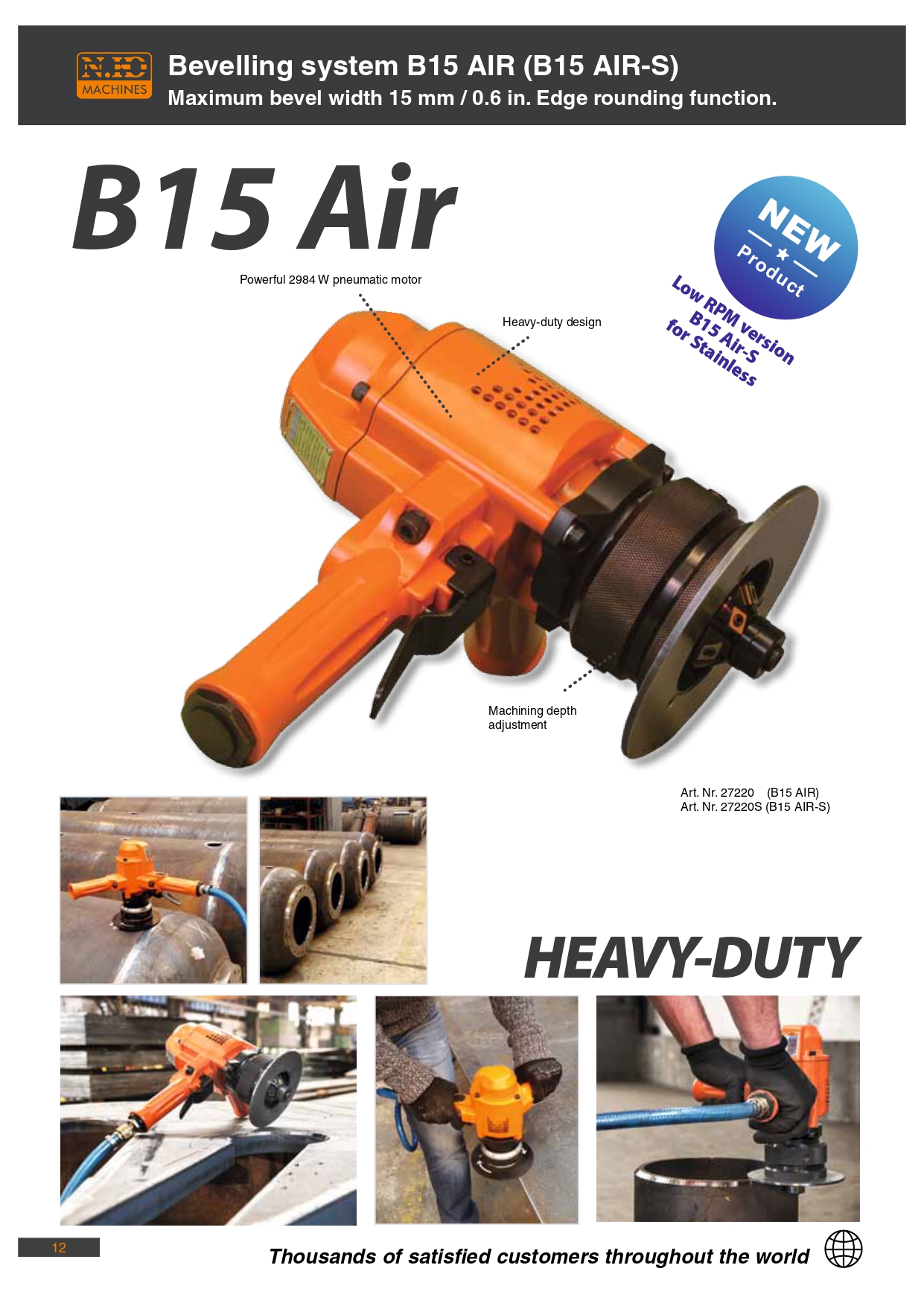

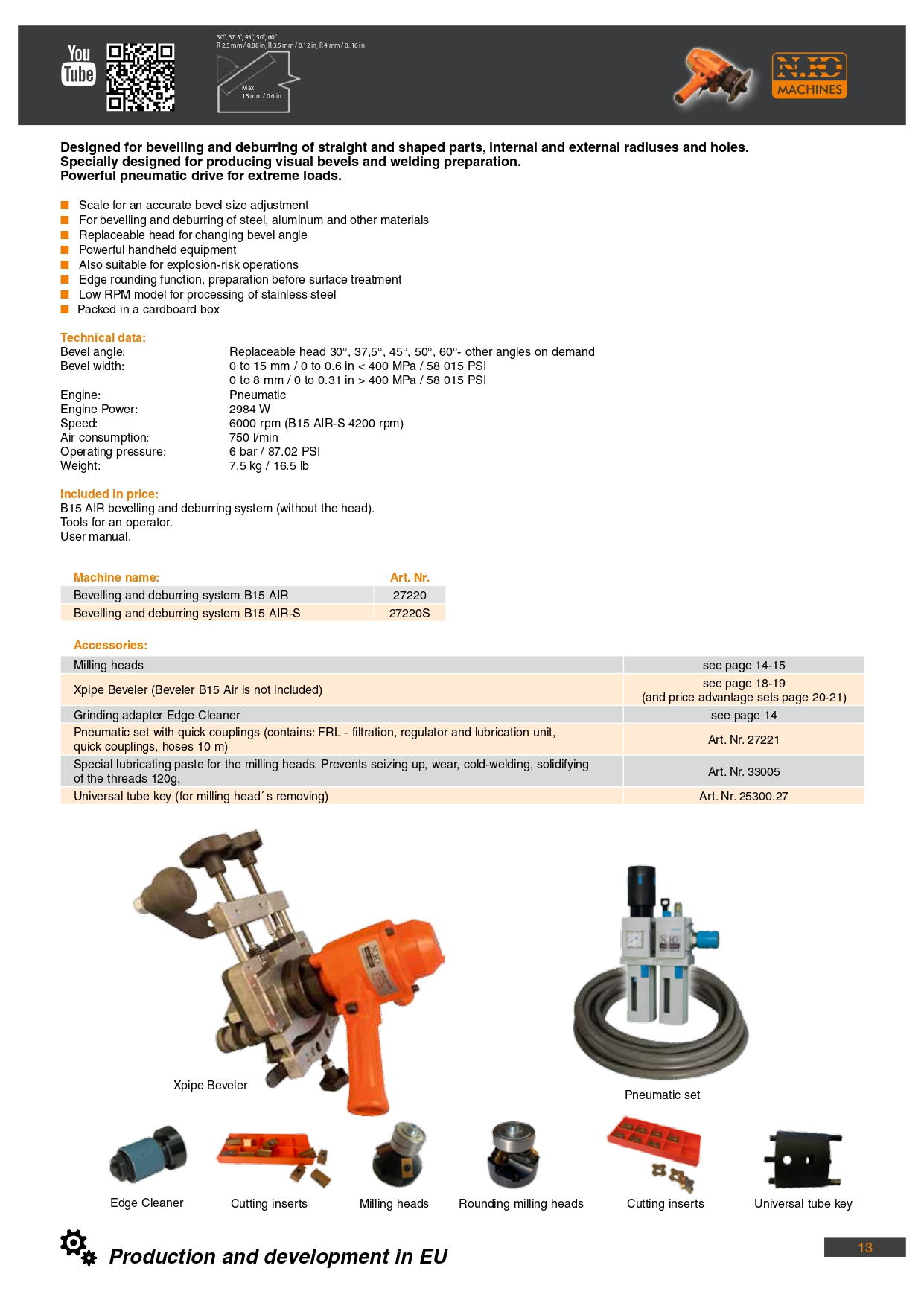

| SET Bevelling and deburring system B15 AIR + Xpipe Beveler (without the milling head) | 27225 | 27225 |
| SET Bevelling and deburring system B15 AIR-S – low RPM version for stainless steel + Xpipe Beveler (without the milling head) | 27225S | 27225S |

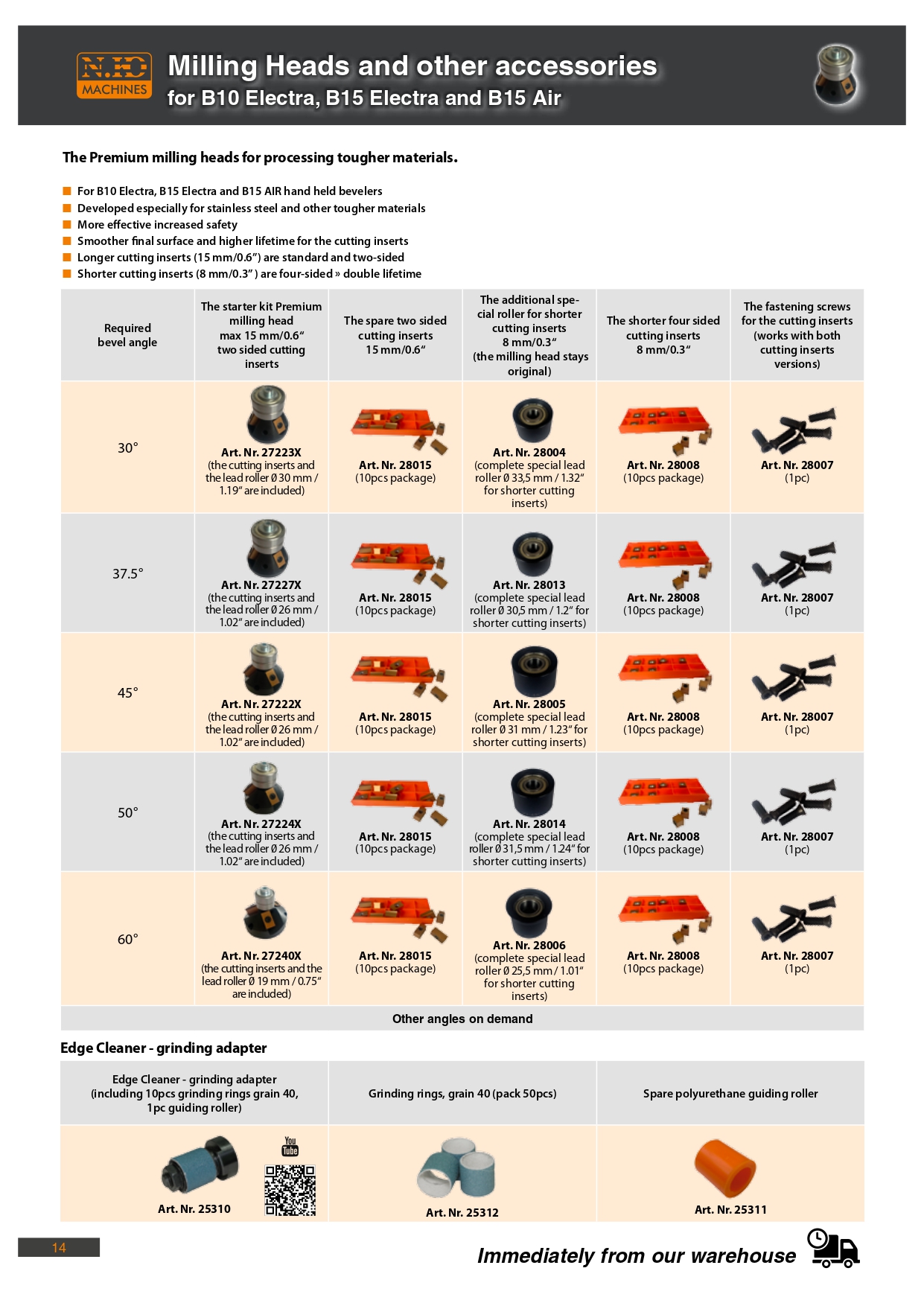

| Accessories – PREMIUM milling heads: | Art.Nr. |
| 30° milling head PREMIUM – the cutting inserts and the lead roller Ø 30 mm / 1.19“are included | 27223X |
| 37,5° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27227X |
| 45° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27222X |
| 50° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27224X |
| 60° milling head PREMIUM – the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included | 27240X |
| The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 33,5 mm / 1.32“ | 28004 |
| The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“ | 28013 |
| The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 31 mm / 1.23“ | 28005 |
| The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“ | 28014 |
| The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 25,5 mm / 1.01“ | 28006 |
| The spare two sided cutting inserts 15 mm / 0.6“ – two-sided, coated – pack of 10 pcs – only for premium milling heads | 28015 |
| The shorter four sided cutting inserts 8 mm / 0.3“ – four-sided, coated – pack of 10 pcs – only for premium milling heads with additional special roller | 28008 |
| The fastening screws for cutting inserts (works with both cutting inserts versions) – only for premium milling heads | 28007 |
| Accessories – Edge cleaner – grinding adapter: | Art.Nr. |
| Edge Cleaner – grinding adapter – including 10 pcs grinding rings grain 40, 1 pc guiding roller | 25310 |
| Grinding rings grain 40 for Edge Cleaner – pack of 50 pcs | 25312 |
| Spare polyurethane guiding roller for Edge Cleaner | 25311 |

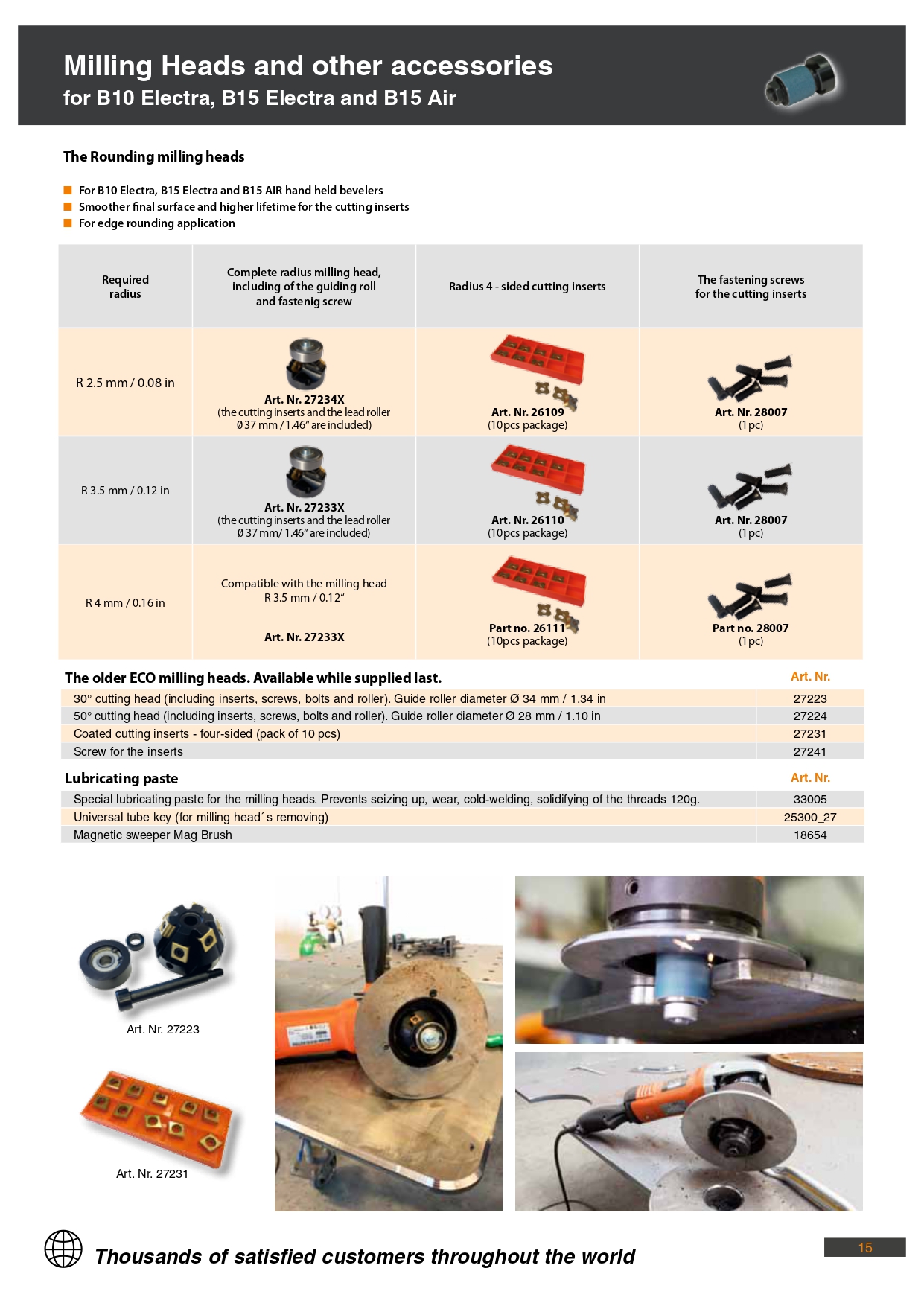

| Accessories – The Rounding milling heads: | Art.Nr. |
| Complete radius milling head R2,5 mm / 0.08“ – including of the guiding roll and fastening screw, the cutting inserts are included – the lead roller diameter Ø 30 mm / 1.19“ | 27234 |
| Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“ – including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included – the lead roller diameter Ø 39,5 mm / 1.55“ | 27233 |
| Cutting inserts for rounding edges R2,5 mm / 0.08“ – four-sided – pack of 10 pcs | 26109 |
| Coated cutting inserts for rounding edges R3,5 mm / 0.12“ – four-sided – pack of 10 pcs | 26110 |
| Coated cutting inserts for rounding edges R4 mm / 0.16“ – four-sided – pack of 10 pcs | 26111 |
| The fastening screws for cutting inserts – only for rounding milling heads | 27242 |
| Accessories – The older ECO milling heads. Available while supplied last. | Art.Nr. |
| 30° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 34 mm / 1.34“ | 27223 |
| 37,5° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27227 |
| 45° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27222 |
| 50° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27224 |
| 60° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 27 mm / 1.06“ | 27240 |
| Cutting head with non-standard angle – including inserts, screws, bolts and roller | 27XXX |
| Coated cutting inserts – four-sided – pack of 10 pcs – only for ECO milling heads | 27231 |
| Screw for the cutting inserts – only for ECO milling heads | 27241 |
| Accessories – others: | Art.Nr. |

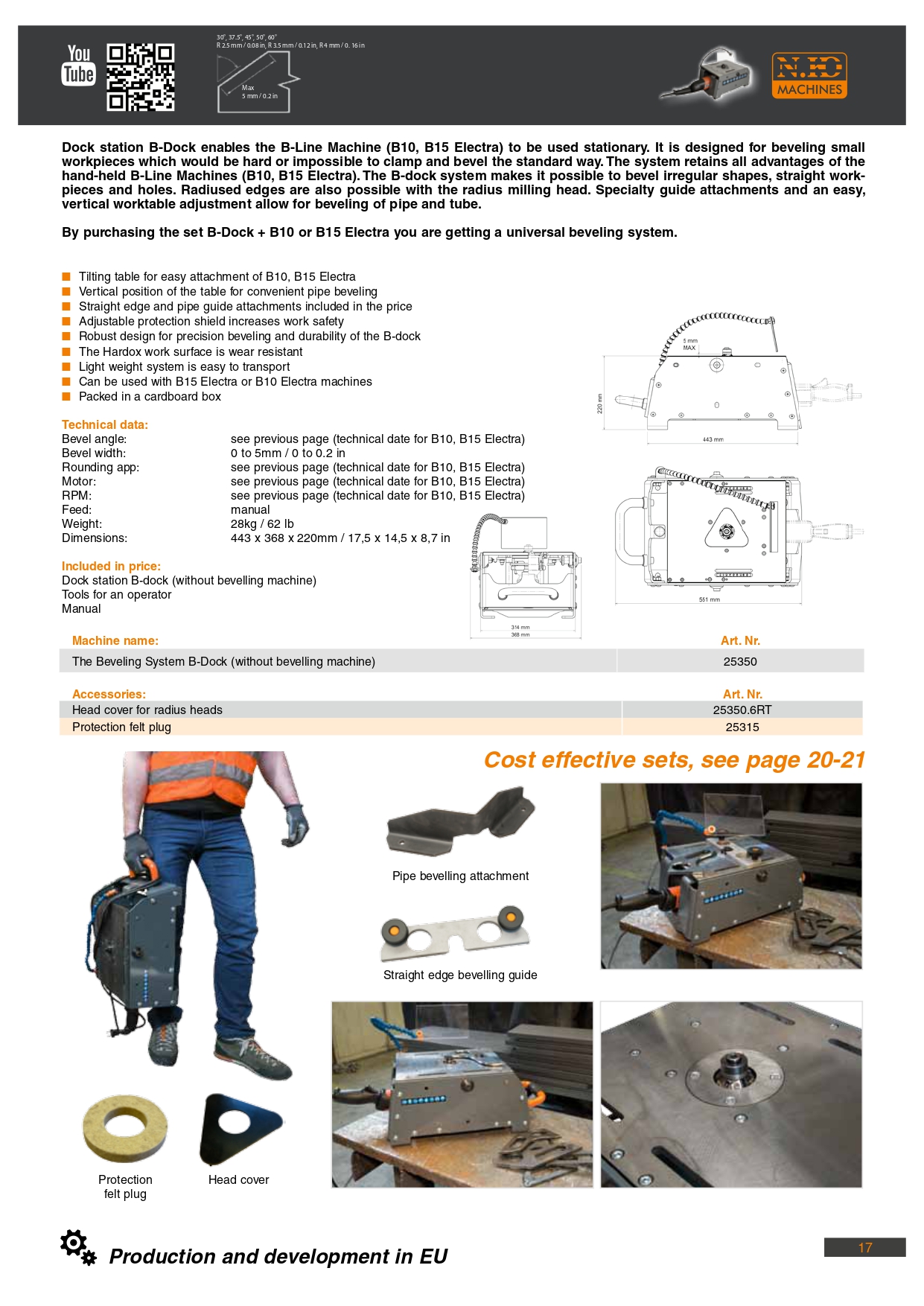

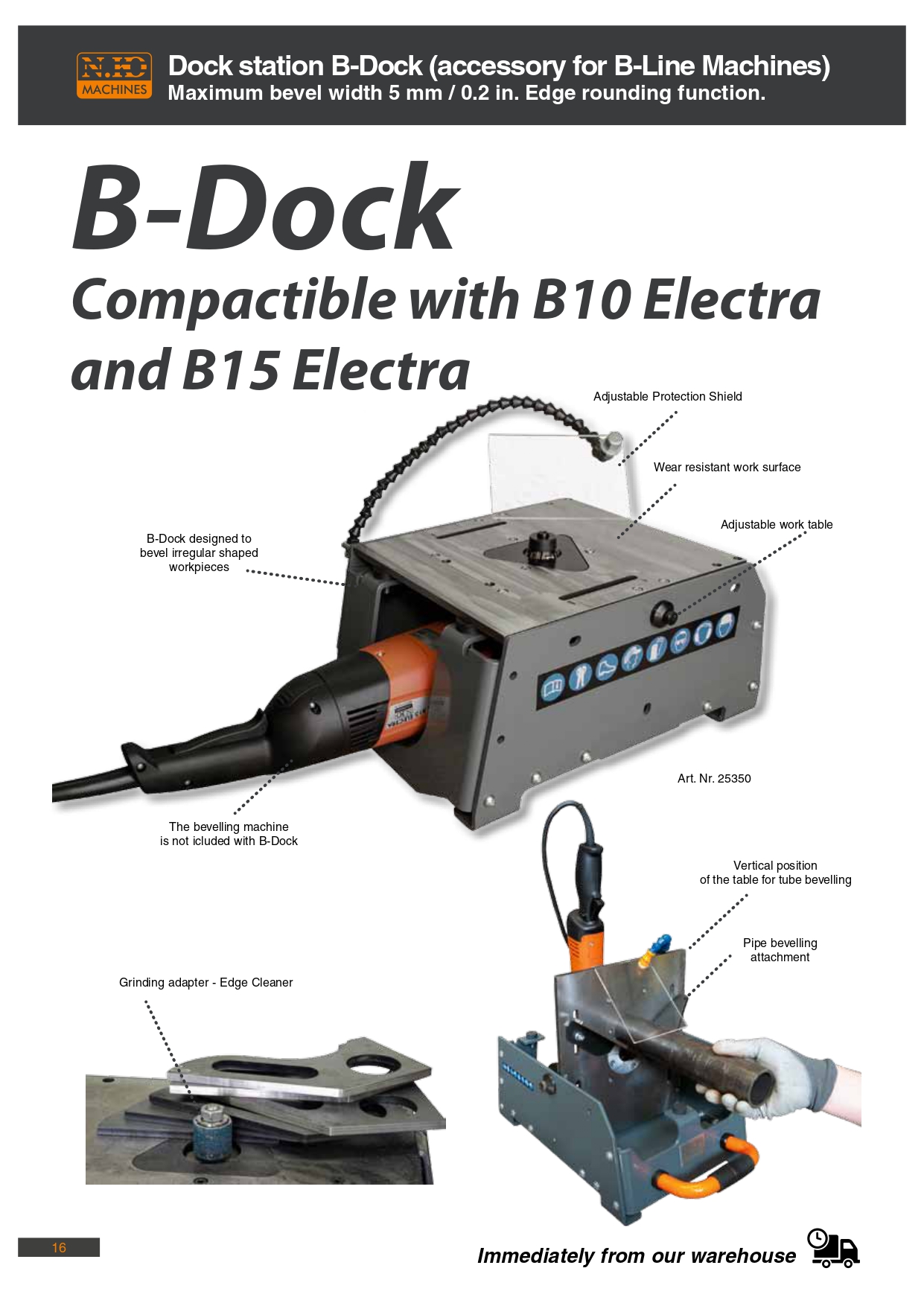

| Dock station B-Dock (beveler B10 Electra / B15 Electra is not included) | 25350 |
| Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“ (beveler B10 Electra / B15 Electra / B15 AIR is not included) | 25500 |
| Pneumatic set for B15 AIR with quick couplings (contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m) | 27221 |
| Special lubricating paste for the milling heads 120g – prevents seizing up, wear, cold-welding, solidifying of the threads | 33005 |

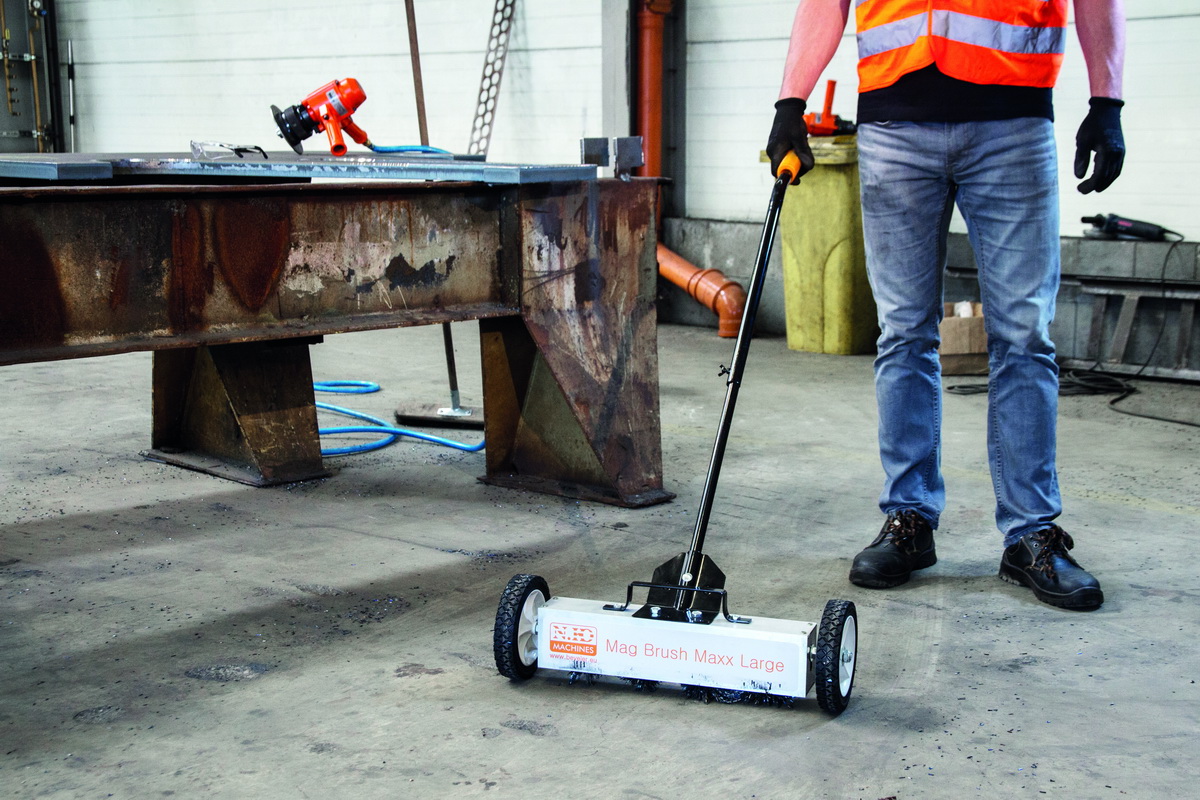

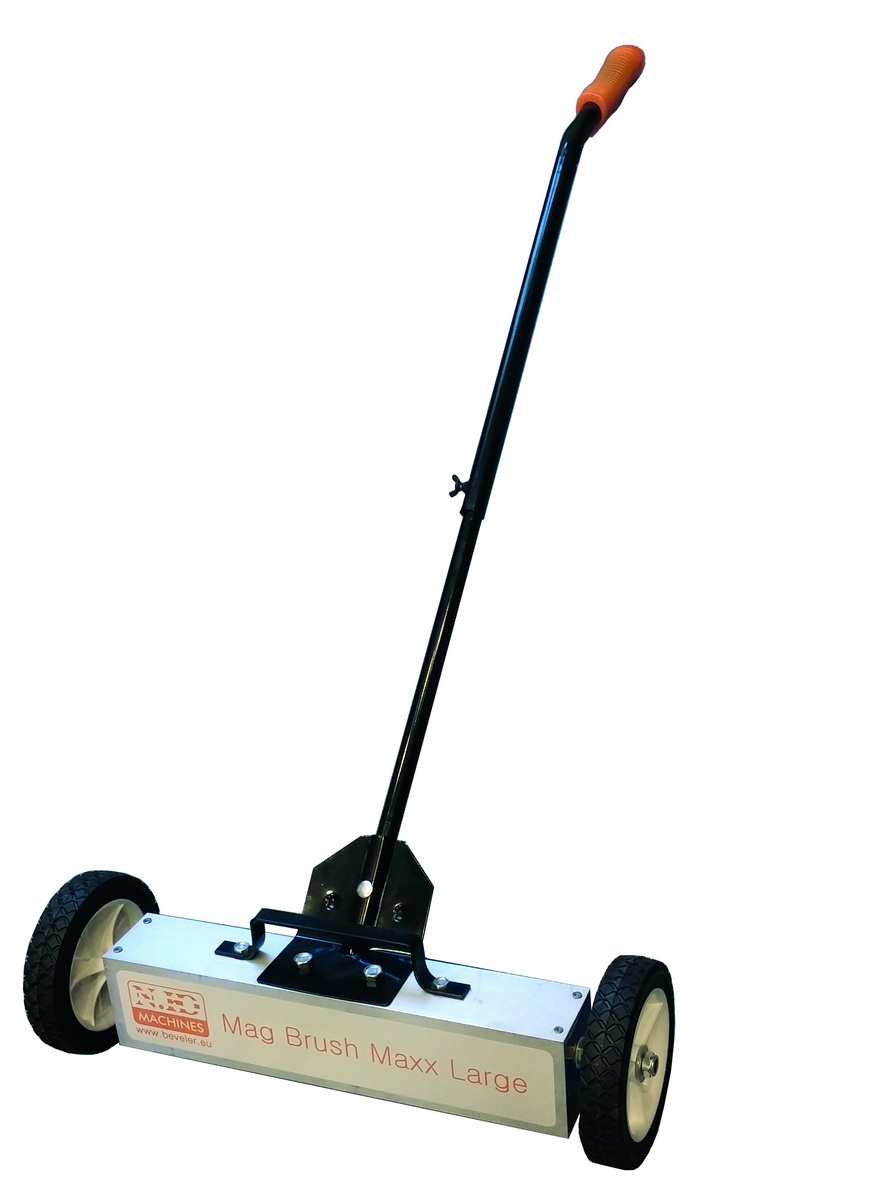

| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |

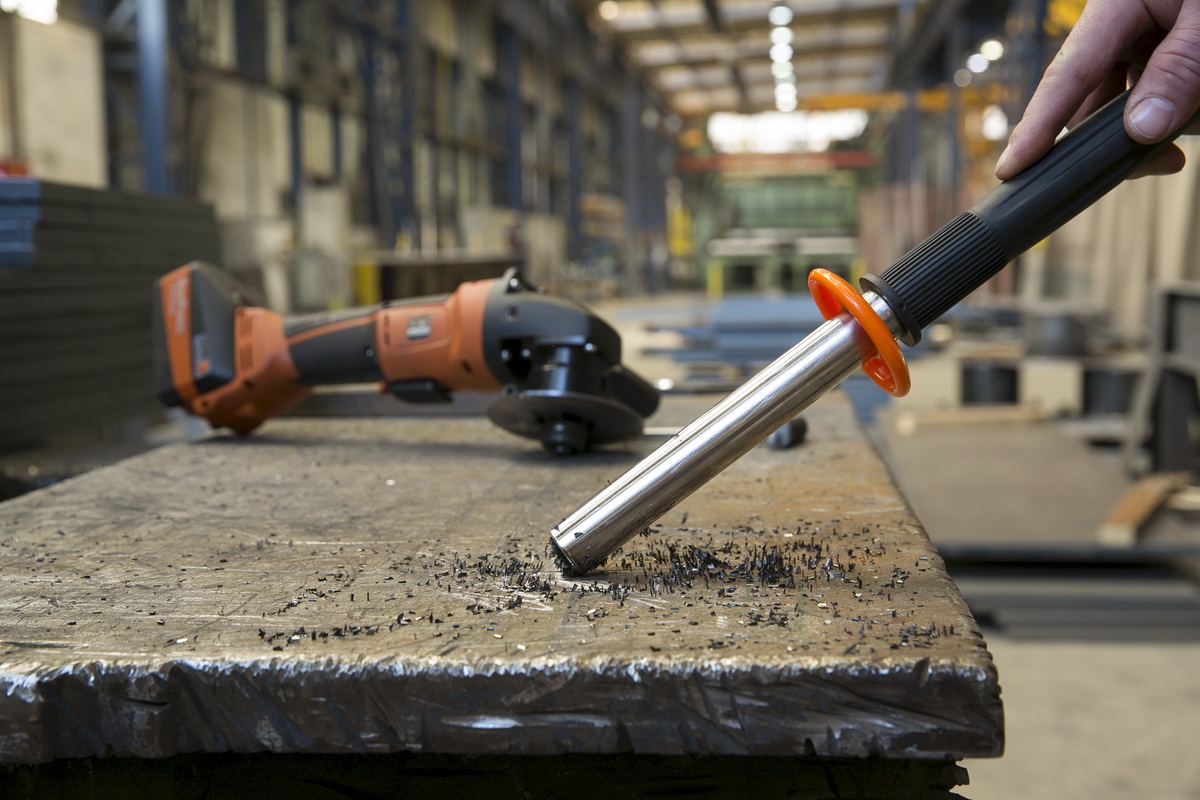

| Mag Brush – collects all magnetic | 18654 |
