Flowdrill – termopuurimise tehnoloogia

tugevamate ja kuluefektiivsemate ühenduste jaoks

Termopuurid

Professionaalsed Flowdrilli termopuurid torukeermete ja tugevate keermesühenduste loomiseks. Saadaval kraega (Standard) ja tasapinnalise viimistlusega (Flat) versioonidena erinevatele materjalidele ja tootmisprotsessidele.

Küsi pakkumist

Kraega viimistlus

Tasapinnaline viimistlus

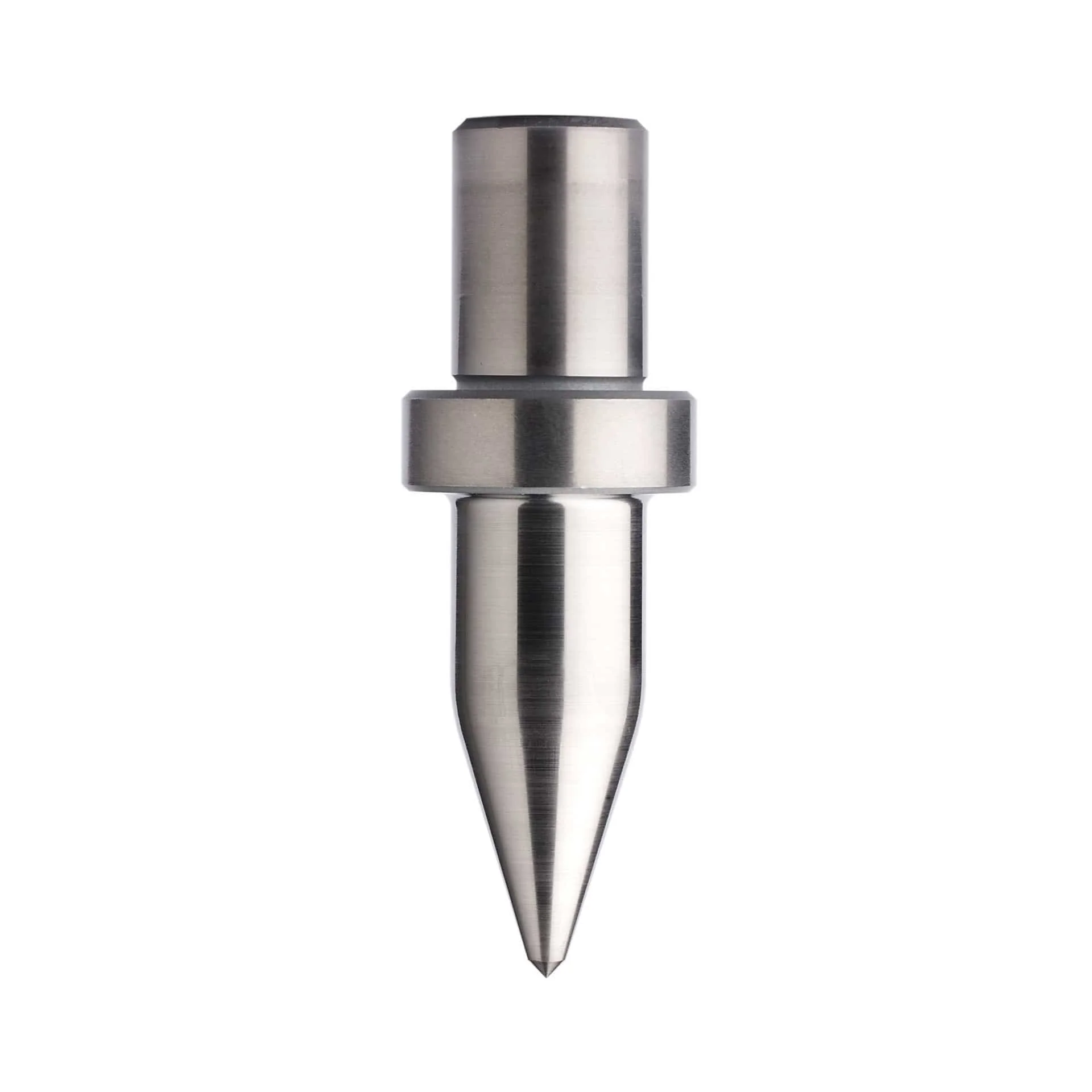

Termopuur G1 Ø 31,9 mm pikk standard

Termopuur G1 Ø 31,9 mm lühike standard

Termopuur G1 Ø 32 mm pikk standard

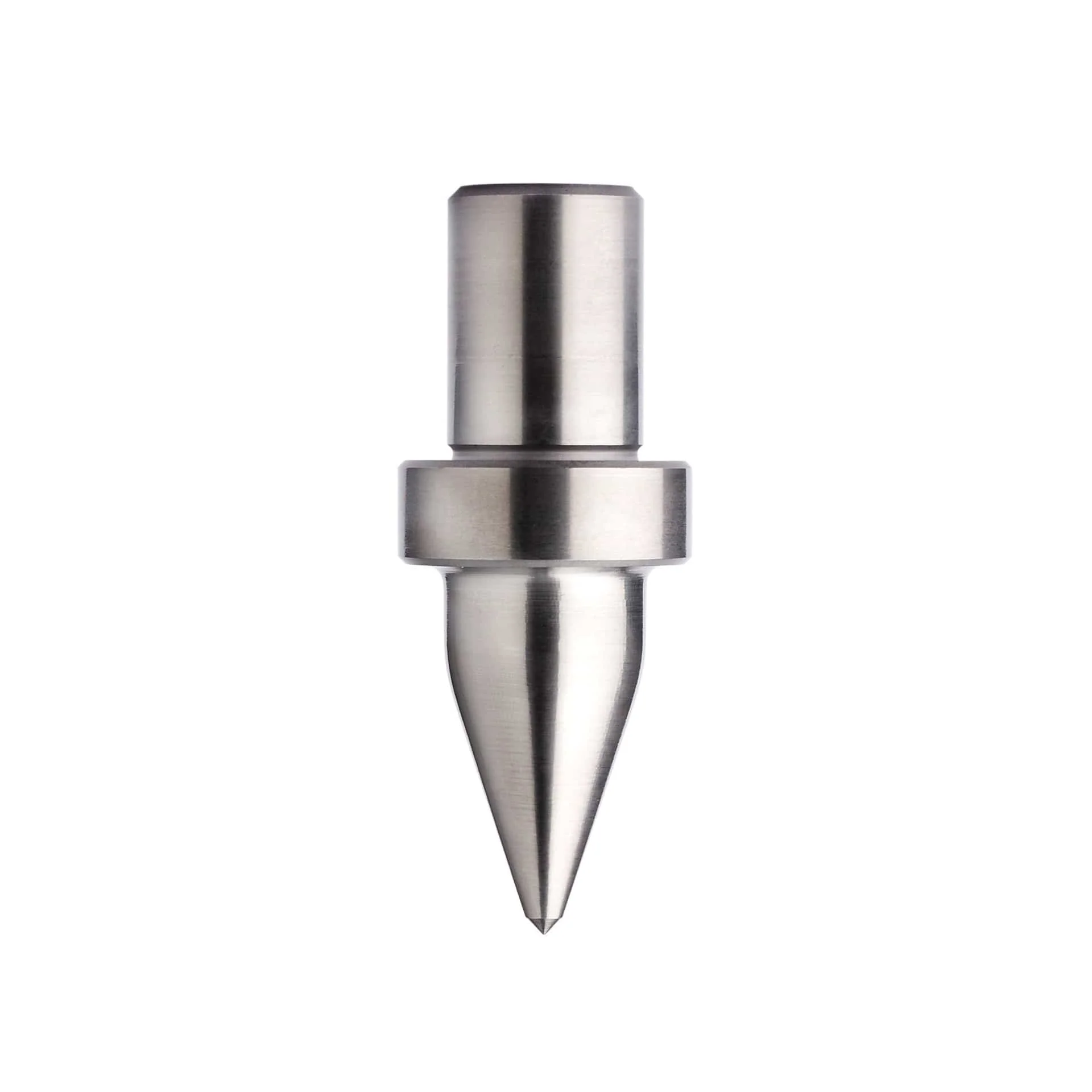

Termopuur G1 Ø 32 mm lühike standard

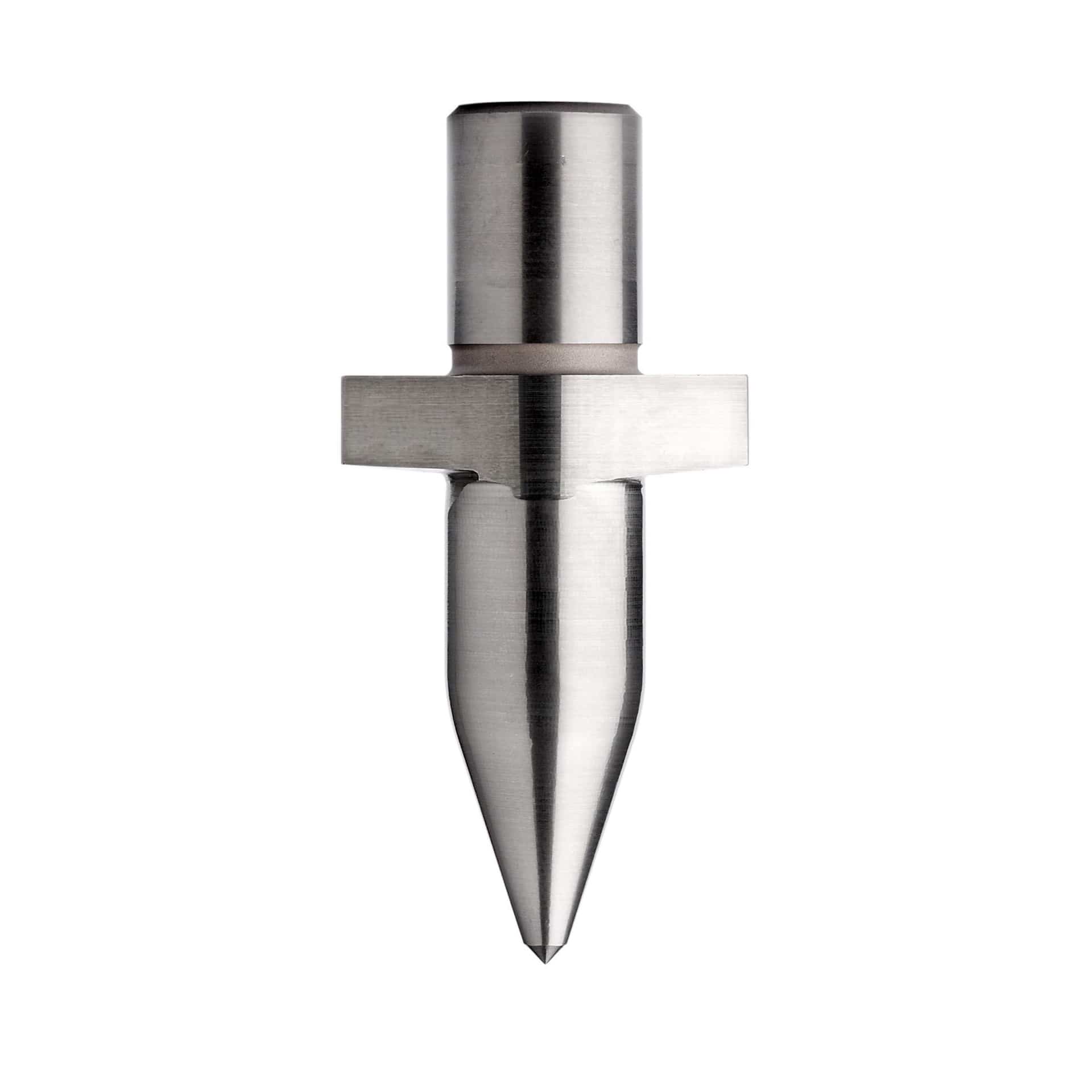

Termopuur G1/2 Ø 19.9 mm Lõikeservaga Long Flat

Termopuur G1/2″ Ø 19.9 mm pikk standard

Lühikesed/SHORT termopuurid

Nimi	Keerme suurus	Läbimõõt Ø D1	Viimistlus	Tootekood
Flowdrill G1/8” Short	G1/8”	9,2 mm	Kraega	200920
Flowdrill G1/4” Short	G1/4”	12,4 mm	Kraega	201240
Flowdrill G3/8” Short	G3/8”	15,9 mm	Kraega	201590
Flowdrill G1/2” Short	G1/2”	19,9 mm	Kraega	201990
Flowdrill G3/4” Short	G3/4”	25,4 mm	Kraega	202540
Flowdrill G1” Short	G1”	31,9 mm	Kraega	203190

SHORT FLAT – Lõikeservaga viimistlusega termopuurid

Nimi	Keerme suurus	Läbimõõt Ø D1	Viimistlus	Tootekood
Flowdrill G1/8” Short Flat Lõikeservaga	G1/8”	9,2 mm	Tasapinnaline	210920
Flowdrill G1/4” Short Flat Lõikeservaga	G1/4”	12,4 mm	Tasapinnaline	211240
Flowdrill G3/8” Short Flat Lõikeservaga	G3/8”	15,9 mm	Tasapinnaline	211590
Flowdrill G1/2” Short Flat Lõikeservaga	G1/2”	19,9 mm	Tasapinnaline	211990
Flowdrill G3/4” Short Flat Lõikeservaga	G3/4”	25,4 mm	Tasapinnaline	212540
Flowdrill G1” Short Flat Lõikeservaga	G1”	31,9 mm	Tasapinnaline	213190

LONG – Pikad termopuurid

Nimi	Keerme suurus	Läbimõõt Ø D1	Viimistlus	Tootekood
Flowdrill G1/8” Long	G1/8”	9,2 mm	Kraega	100920
Flowdrill G1/4” Long	G1/4”	12,4 mm	Kraega	101240
Flowdrill G3/8” Long	G3/8”	15,9 mm	Kraega	101590
Flowdrill G1/2” Long	G1/2”	19,9 mm	Kraega	101990
Flowdrill G3/4” Long	G3/4”	25,4 mm	Kraega	102540

LONG FLAT – Pikad lõikeservaga termopuurid

Nimi	Keerme suurus	Läbimõõt Ø D1	Viimistlus	Tootekood
Flowdrill G1/8” Long Flat	G1/8”	9,2 mm	Tasapinnaline	110920
Flowdrill G1/4” Long Flat	G1/4”	12,4 mm	Tasapinnaline	111240
Flowdrill G3/8” Long Flat	G3/8”	15,9 mm	Tasapinnaline	111590
Flowdrill G1/2” Long Flat	G1/2”	19,9 mm	Tasapinnaline	111990
Flowdrill G3/4” Long Flat	G3/4”	25,4 mm	Tasapinnaline	112540

Flowdrill UNF – Ameerika Standard Fine

Flowdrill UNF seeria termopuurid on mõeldud Ameerika standardi peene keermega ühendustele. Saadaval erinevates pikkustes ja viimistlustes (Short, Long, Flat), et sobituda erinevate tootmisprotsesside ja materjalidega.

Lühikesed SHORT – kraega termopuurid

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4-48 Short	#4-48	200260	2,6 mm
Flowdrill #6-40 Short	#6-40	200320	3,2 mm
Flowdrill #8-36 Short	#8-36	200390	3,9 mm
Flowdrill #10-32 Short	#10-32	200440	4,4 mm
Flowdrill #12-28 Short	#12-28	200500	5,0 mm
Flowdrill 1/4-28 Short	1/4-28	200590	5,9 mm
Flowdrill 5/16-24 Short	5/16-24	200740	7,4 mm
Flowdrill 3/8-24 Short	3/8-24	200900	9,0 mm
Flowdrill 7/16-20 Short	7/16-20	201040	10,4 mm
Flowdrill 1/2-20 Short	1/2-20	201210	12,1 mm
Flowdrill 3/4-16 Short	3/4-16	201830	18,3 mm

Termopuurid SHORT FLAT – tasapinnaline viimistlus

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4-48 Short Flat	#4-48	210260	2,6 mm
Flowdrill #6-40 Short Flat	#6-40	210320	3,2 mm
Flowdrill #8-36 Short Flat	#8-36	210390	3,9 mm
Flowdrill #10-32 Short Flat	#10-32	210440	4,4 mm
Flowdrill #12-28 Short Flat	#12-28	210500	5,0 mm
Flowdrill 1/4-28 Short Flat	1/4-28	210590	5,9 mm
Flowdrill 5/16-24 Short Flat	5/16-24	210740	7,4 mm
Flowdrill 3/8-24 Short Flat	3/8-24	210900	9,0 mm
Flowdrill 7/16-20 Short Flat	7/16-20	211040	10,4 mm
Flowdrill 1/2-20 Short Flat	1/2-20	211210	12,1 mm
Flowdrill 3/4-16 Short Flat	3/4-16	211830	18,3 mm

Termopuurid Pikk/LONG – kraega termopuurid

Nimi	Keerme	Art nr	Ø D1
Flowdrill #6-40 Long	#6-40	100320	3,2 mm
Flowdrill #10-32 Long	#10-32	100440	4,4 mm
Flowdrill #12-28 Long	#12-28	100500	5,0 mm
Flowdrill 1/4-28 Long	1/4-28	100590	5,9 mm
Flowdrill 5/16-24 Long	5/16-24	100740	7,4 mm
Flowdrill 3/8-24 Long	3/8-24	100900	9,0 mm
Flowdrill 7/16-20 Long	7/16-20	101040	10,4 mm
Flowdrill 1/2-20 Long	1/2-20	101210	12,1 mm
Flowdrill 9/16-18 Long	9/16-18	101360	13,6 mm
Flowdrill 3/4-16 Long	3/4-16	101830	18,3 mm

Termopuurid LONG FLAT – tasapinnaline viimistlus

Nimi	Keerme	Art nr	Ø D1
Flowdrill #6-40 Long Flat	#6-40	110320	3,2 mm
Flowdrill #10-32 Long Flat	#10-32	110440	4,4 mm
Flowdrill #12-28 Long Flat	#12-28	110500	5,0 mm
Flowdrill 1/4-28 Long Flat	1/4-28	110590	5,9 mm
Flowdrill 5/16-24 Long Flat	5/16-24	110740	7,4 mm
Flowdrill 3/8-24 Long Flat	3/8-24	110900	9,0 mm
Flowdrill 7/16-20 Long Flat	7/16-20	111040	10,4 mm
Flowdrill 1/2-20 Long Flat	1/2-20	111210	12,1 mm
Flowdrill 9/16-18 Long Flat	9/16-18	111360	13,6 mm
Flowdrill 3/4-16 Long Flat	3/4-16	111830	18,3 mm

Flowdrill AluDrill – Ameerika standard

AluDrill seeria termopuurid on mõeldud peamiselt alumiiniumi ja kergemate materjalide jaoks, pakkudes suuremat läbimõõtu ja torukeermete lahendusi.

Termopuurid lühike/SHORT

Nimi	Keerme	Art nr	Ø D1
AluDrill 1/16-27 Short	1/16-27	200700	7,0 mm
AluDrill 1/8-27 Short	1/8-27	200940	9,4 mm
AluDrill 1/4-18 Short	1/4-18	201240	12,4 mm
AluDrill 3/8-18 Short	3/8-18	201580	15,8 mm
AluDrill 1/2-14 Short	1/2-14	201960	19,6 mm
AluDrill 3/4-14 Short	3/4-14	202490	24,9 mm

Termopuurid pikk/LONG

Nimi	Keerme	Art nr	Ø D1
AluDrill 1/16-27 Long	1/16-27	100700	7,0 mm
AluDrill 1/8-27 Long	1/8-27	100940	9,4 mm
AluDrill 3/8-18 Long	3/8-18	101580	15,8 mm
AluDrill 1/2-14 Long	1/2-14	101960	19,6 mm
AluDrill 3/4-14 Long	3/4-14	102490	24,9 mm

Termopuur – SHORT (UNC)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑40 Short	#4‑40	200250	2,5 mm
Flowdrill #5‑40 Short	#5‑40	200290	2,9 mm
Flowdrill #6‑32 Short	#6‑32	200310	3,1 mm
Flowdrill #8‑32 Short	#8‑32	200380	3,8 mm
Flowdrill #10‑24 Short	#10‑24	200430	4,3 mm
Flowdrill #12‑24 Short	#12‑24	200490	4,9 mm
Flowdrill 1/4‑20 Short	1/4‑20	200570	5,7 mm
Flowdrill 5/16‑18 Short	5/16‑18	200720	7,2 mm
Flowdrill 3/8‑16 Short	3/8‑16	200870	8,7 mm
Flowdrill 7/16‑14 Short	7/16‑14	201020	10,2 mm
Flowdrill 1/2‑13 Short	1/2‑13	201170	11,7 mm
Flowdrill 9/16‑12 Short	9/16‑12	201320	13,2 mm
Flowdrill 5/8‑11 Short	5/8‑11	201470	14,7 mm
Flowdrill 3/4‑10 Short	3/4‑10	201780	17,8 mm

Termopuur – SHORT/FLAT (UNC)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑40 Short/Flat	#4‑40	210250	2,5 mm
Flowdrill #5‑40 Short/Flat	#5‑40	210290	2,9 mm
Flowdrill #6‑32 Short/Flat	#6‑32	210310	3,1 mm
Flowdrill #8‑32 Short/Flat	#8‑32	210380	3,8 mm
Flowdrill #10‑24 Short/Flat	#10‑24	210430	4,3 mm
Flowdrill #12‑24 Short/Flat	#12‑24	210490	4,9 mm
Flowdrill 1/4‑20 Short/Flat	1/4‑20	210570	5,7 mm
Flowdrill 5/16‑18 Short/Flat	5/16‑18	210720	7,2 mm
Flowdrill 3/8‑16 Short/Flat	3/8‑16	210870	8,7 mm
Flowdrill 7/16‑14 Short/Flat	7/16‑14	211020	10,2 mm
Flowdrill 1/2‑13 Short/Flat	1/2‑13	211170	11,7 mm
Flowdrill 9/16‑12 Short/Flat	9/16‑12	211320	13,2 mm
Flowdrill 5/8‑11 Short/Flat	5/8‑11	211470	14,7 mm
Flowdrill 3/4‑10 Short/Flat	3/4‑10	211780	17,8 mm

Termopuur – LONG (UNC)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑40 Long	#4‑40	100250	2,5 mm
Flowdrill #5‑40 Long	#5‑40	100290	2,9 mm
Flowdrill #6‑32 Long	#6‑32	100310	3,1 mm
Flowdrill #8‑32 Long	#8‑32	100380	3,8 mm
Flowdrill #10‑24 Long	#10‑24	100430	4,3 mm
Flowdrill #12‑24 Long	#12‑24	100490	4,9 mm
Flowdrill 1/4‑20 Long	1/4‑20	100570	5,7 mm
Flowdrill 5/16‑18 Long	5/16‑18	100720	7,2 mm
Flowdrill 3/8‑16 Long	3/8‑16	100870	8,7 mm
Flowdrill 7/16‑14 Long	7/16‑14	101020	10,2 mm
Flowdrill 1/2‑13 Long	1/2‑13	101170	11,7 mm
Flowdrill 9/16‑12 Long	9/16‑12	101320	13,2 mm
Flowdrill 5/8‑11 Long	5/8‑11	101470	14,7 mm
Flowdrill 3/4‑10 Long	3/4‑10	101780	17,8 mm

Termopuur – LONG/FLAT (UNC)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑40 Long/Flat	#4‑40	110250	2,5 mm
Flowdrill #5‑40 Long/Flat	#5‑40	110290	2,9 mm
Flowdrill #6‑32 Long/Flat	#6‑32	110310	3,1 mm
Flowdrill #8‑32 Long/Flat	#8‑32	110380	3,8 mm
Flowdrill #10‑24 Long/Flat	#10‑24	110430	4,3 mm
Flowdrill #12‑24 Long/Flat	#12‑24	110490	4,9 mm
Flowdrill 1/4‑20 Long/Flat	1/4‑20	110570	5,7 mm
Flowdrill 5/16‑18 Long/Flat	5/16‑18	110720	7,2 mm
Flowdrill 3/8‑16 Long/Flat	3/8‑16	110870	8,7 mm
Flowdrill 7/16‑14 Long/Flat	7/16‑14	111020	10,2 mm
Flowdrill 1/2‑13 Long/Flat	1/2‑13	111170	11,7 mm
Flowdrill 9/16‑12 Long/Flat	9/16‑12	111320	13,2 mm
Flowdrill 5/8‑11 Long/Flat	5/8‑11	111470	14,7 mm
Flowdrill 3/4‑10 Long/Flat	3/4‑10	111780	17,8 mm

Termopuur – SHORT (UNF)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑48 Short	#4‑48	200260	2,6 mm
Flowdrill #6‑40 Short	#6‑40	200320	3,2 mm
Flowdrill #8‑36 Short	#8‑36	200390	3,9 mm
Flowdrill #10‑32 Short	#10‑32	200440	4,4 mm
Flowdrill #12‑28 Short	#12‑28	200500	5,0 mm
Flowdrill 1/4‑28 Short	1/4‑28	200590	5,9 mm
Flowdrill 5/16‑24 Short	5/16‑24	200740	7,4 mm
Flowdrill 3/8‑24 Short	3/8‑24	200900	9,0 mm
Flowdrill 7/16‑20 Short	7/16‑20	201040	10,4 mm
Flowdrill 1/2‑20 Short	1/2‑20	201210	12,1 mm
Flowdrill 3/4‑16 Short	3/4‑16	201830	18,3 mm

Termopuur – SHORT/FLAT (UNF)

Nimi	Keerme	Art nr	Ø D1
Flowdrill #4‑48 Short/Flat	#4‑48	210260	2,6 mm
Flowdrill #6‑40 Short/Flat	#6‑40	210320	3,2 mm
Flowdrill #8‑36 Short/Flat	#8‑36	210390	3,9 mm
Flowdrill #10‑32 Short/Flat	#10‑32	210440	4,4 mm
Flowdrill #12‑28 Short/Flat	#12‑28	210500	5,0 mm
Flowdrill 1/4‑28 Short/Flat	1/4‑28	210590	5,9 mm

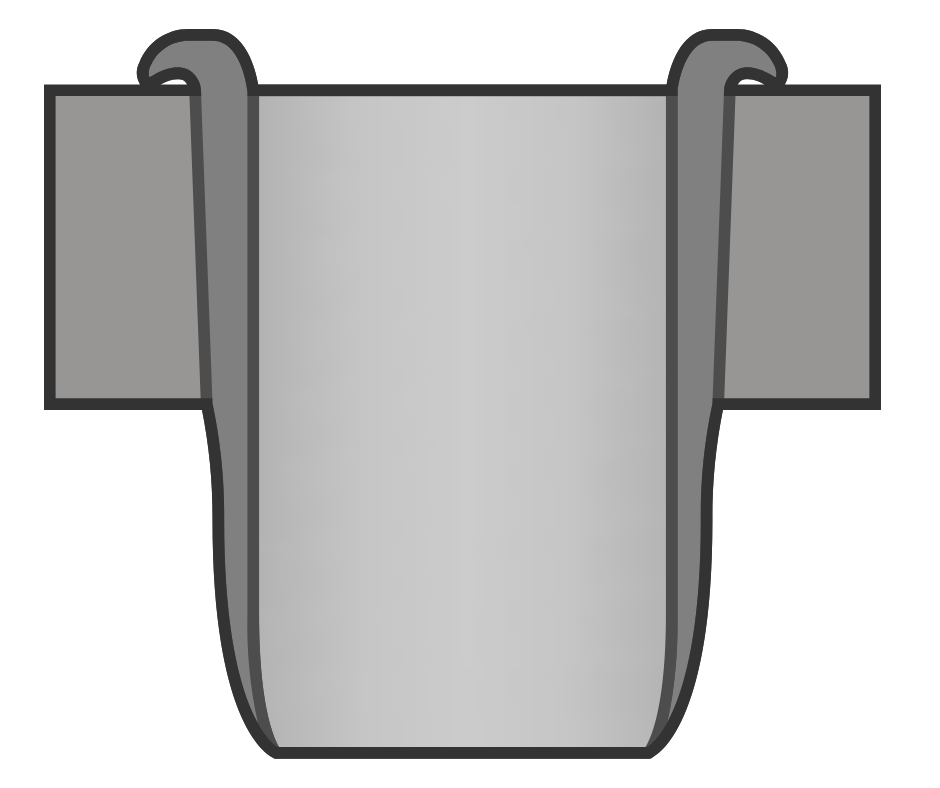

Termopuur (Standard) → moodustab kõrgendatud hülsi tugevama ühenduse jaoks

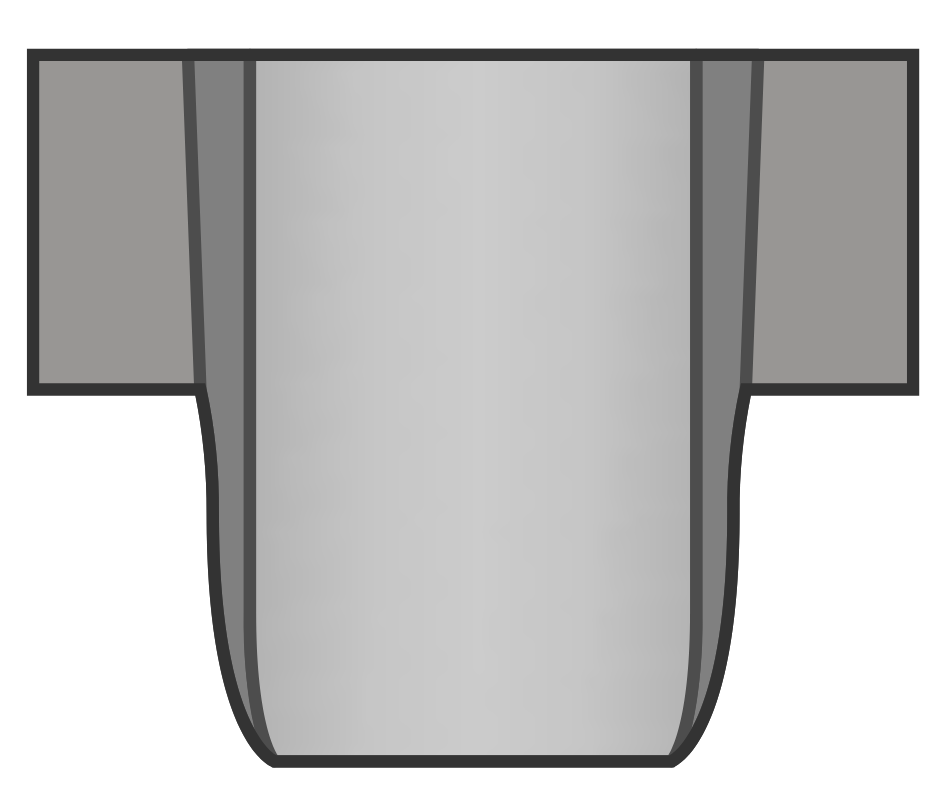

Termpuur Lõikeservaga jätab Tasapinnalinnalise (Flat) → jätab sileda ja puhta pinnaviimistluse nähtavatele detailidele

NB Flowdrilli termopuurid sobivad kasutamiseks terases, roostevabas terases, alumiiniumis, vases ja teatud messingisulamites.
